Excel A60 Rims – Professional Grade
A60 Rims are the ultimate professional racing rim and are are structurally 15% stronger than our legendary Takasago Excel Rims. A60 rims feature a V-Curve profile that helps reduce mud buildup, keeping your bike lighter in muddy conditions. Rims can be laced to OEM hubs, Excel Pro Series Hubs, and certain aftermarket hubs.
The A60 rims are only available in black and are characterized by a laser marked pinstripe on both sides of the rim. Trusted by SX and MX professional racing teams worldwide.
- Features a unique Alloy compound for added strength

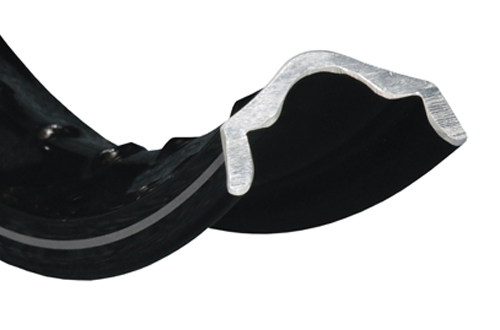

- Special V-Curve Profile to Reduce Mud Buildup
- 15% stronger than Excel Takasago Rims
Excel Playlist
3 Videos
We like the look of the A60 Rim. Our riders also notice a traction/feel difference and prefer the Excel A60 Rim.
The Only Rim We Trust!
I love the strength and the look of excel rims. Not only do I feel safe but they also look good too.
The A60 rims are very durable and we have had no issues with them at all. We also like the shape of the A60 rims as their profile seems to collect less mud on the rim in our racing.
Excel Rim Application Chart
The Application chart below is by models/sizes. If your application is not listed, please contact us. Excel Rims are meant to be laced by professional wheel builders.
Note this chart may not display correctly on some mobile devices.
The below application chart is if you are running STOCK OEM Hubs. If you are running aftermarket hubs click the link below.
| Make | Model | Year | Rim Size | Hole Count | Front or Rear | A60 Rims | OEM Spoke, Nipple OK? | Excel Spoke Set PN |
|---|---|---|---|---|---|---|---|---|
| Honda | CR125R | 95-07 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CR250R | 95-07 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CRF250R | 04-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CRF250RX | 19-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CRF250X | 04-09, 12-13, 15-18 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | XR250R | 90-04 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-12217_ |
| Honda | XR400R | 96-04 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-12217_ |
| Honda | CRF450R | 02-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CRF450X | 05-09, 12-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CRF450RX | 17-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CRF450L | 19-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CRF450RL | 19-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | CRF450WE (Words Edition) | 2020-2024 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217 |
| Honda | CR500R | 95-01 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11217_ |
| Honda | XR600R | 88-00 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-12217_ |
| Honda | XR650R | 00-07 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-12217_ |
| Honda | CR125R | 89-01 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-11187_ |
| Honda | CR125R | 89-01 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-11197_ |
| Honda | CR125R | 89-01 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-11197_ |
| Honda | CR125R | 02-04 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-13187_ |
| Honda | CR125R | 02-04 | 19x1.85 | 32H | Rear | GDK611 | YES | XS8-13197_ |
| Honda | CR125R | 02-04 | 19x2.15 | 32H | Rear | GEK611 | YES | XS8-13197_ |
| Honda | CR125R | 05-07 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-15187_ |
| Honda | CR125R | 05-07 | 19x1.85 | 32H | Rear | GDK611 | YES | XS8-15197_ |
| Honda | CR125R | 05-07 | 19x2.15 | 32H | Rear | GEK611 | YES | XS8-15197_ |
| Honda | CR250R | 89-01 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-11187_ |
| Honda | CR250R | 89-01 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-11197_ |
| Honda | CR250R | 89-01 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-11197_ |
| Honda | CR250R | 02-04 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-13187_ |
| Honda | CR250R | 02-04 | 19x1.85 | 32H | Rear | GDK611 | YES | XS8-13197_ |
| Honda | CR250R | 02-04 | 19x2.15 | 32H | Rear | GEK611 | YES | XS8-13197_ |
| Honda | CR250R | 05-07 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-15187_ |
| Honda | CR250R | 05-07 | 19x1.85 | 32H | Rear | GDK611 | YES | XS8-15197_ |
| Honda | CR250R | 05-07 | 19x2.15 | 32H | Rear | GEK611 | YES | XS8-15197_ |
| Honda | CRF250R | 04 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-13187_ |
| Honda | CRF250R | 04 | 19x1.85 | 32H | Rear | GDK611 | YES | XS8-13197_ |
| Honda | CRF250R | 04 | 19x2.15 | 32H | Rear | GEK611 | YES | XS8-13197_ |
| Honda | CRF250R | 05-24 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-15187_ |
| Honda | CRF250R | 05-24 | 19x1.85 | 32H | Rear | GDK611 | YES | XS8-15197_ |
| Honda | CRF250R | 05-24 | 19x2.15 | 32H | Rear | GEK611 | YES | XS8-15197_ |
| Honda | CRF250X | 04-05 | 18x2.15 | 32H | Rear | FEK611 | YES | XS8-13187_ |
| Honda | CRF250X | 04-05 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-13197_ |
| Honda | CRF250X | 04-05 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-13197_ |
| Honda | CRF250X | 06-09, 12-13, 15-18 | 18x2.15 | 32H | Rear | FEK611 | YES | XS8-15187_ |
| Honda | CRF250X | 06-09, 12-13, 15-18 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-15197_ |
| Honda | CRF250X | 06-09, 12-13, 15-18 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-15197_ |
| Honda | CRF250RX | 19-24 | 18x2.15 | 32H | Rear | FEK611 | YES | XS8-15187_ |
| Honda | CRF250RX | 19-24 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-15197_ |
| Honda | CRF250RX | 19-24 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-15197_ |
| Honda | CRF450WE (Words Edition) | 2020-2024 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-15187_ |
| Honda | CRF450WE (Words Edition) | 2020-2024 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-15197_ |
| Honda | CRF450WE (Words Edition) | 2020-2024 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-15197_ |
| Honda | CRF450R | 02-04 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-13187_ |
| Honda | CRF450R | 02-04 | 19x1.85 | 32H | Rear | GDK611 | YES | XS8-13197_ |
| Honda | CRF450R | 02-04 | 19x2.15 | 32H | Rear | GEK611 | YES | XS8-13197_ |
| Honda | CRF450R | 05-24 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-15187_ |
| Honda | CRF450R | 05-24 | 19x1.85 | 32H | Rear | GDK611 | YES | XS8-15197_ |
| Honda | CRF450R | 05-24 | 19x2.15 | 32H | Rear | GEK611 | YES | XS8-15197_ |
| Honda | CRF450X | 05-09, 12-23 | 18x2.15 | 32H | Rear | FEK611 | YES | XS8-15187_ |
| Honda | CRF450X | 05-09, 12-23 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-15197_ |
| Honda | CRF450X | 05-09, 12-23 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-15197_ |
| Honda | CRF450RX | 17-24 | 18x2.15 | 32H | Rear | FEK611 | YES | XS8-15187_ |
| Honda | CRF450RX | 17-24 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-15197_ |
| Honda | CRF450RX | 17-24 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-15197_ |
| Honda | CRF450L | 19-24 | 18x2.15 | 32H | Rear | FEK611 | YES | XS8-15187_ |
| Honda | CRF450L | 19-24 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-15197_ |
| Honda | CRF450L | 19-24 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-15197_ |
| Honda | CRF450RL | 19-24 | 18x2.15 | 32H | Rear | FEK611 | YES | XS8-15187_ |
| Honda | CRF450RL | 19-24 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-15197_ |
| Honda | CRF450RL | 19-24 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-15197_ |
| Honda | CR500R | 89-01 | 18x2.15 | 32H | Rear | FEK611 | NO | XS8-11187_ |
| Honda | CR500R | 89-01 | 19x1.85 | 32H | Rear | GDK611 | NO | XS8-11197_ |
| Honda | CR500R | 89-01 | 19x2.15 | 32H | Rear | GEK611 | NO | XS8-11197_ |
| Kawasaki | KX125 | 89-98 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-21217_ |
| Kawasaki | KX125 | 99-05 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-21217_ |
| Kawasaki | KDX200 | 93-06 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KDX220R | 97-05 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KDX250 | 91-94 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KX250 | 89-98 & 05 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-21217_ |
| Kawasaki | KX250 | 99-04 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-21217_ |
| Kawasaki | KX250 | 06-07 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KX250 | 19-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KX250F | 04-05 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-21217_ |
| Kawasaki | KX250F | 06-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KX250X | 21-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KLX250R | 94-96 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KLX300R | 97-07 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KLX400R | 03-04 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-31217_ |
| Kawasaki | KLX400SR | 03-04 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-31217_ |
| Kawasaki | KX450 | 19-23 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KX450F | 06-18 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KX450X | 21-23 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KLX450R | 08-09, 18-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KX500 | 89-04 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-21217_ |
| Kawasaki | KLX650R | 93-96 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-22217_ |
| Kawasaki | KX125 | 89-02 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-21187_ |
| Kawasaki | KX125 | 89-02 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-21197_ |
| Kawasaki | KX125 | 89-02 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-21197_ |
| Kawasaki | KX125 | 03-05 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KX125 | 03-05 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KX125 | 03-05 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KDX200 | 89-06 | 18x2.15 | 36H | Rear | FEK610 | NO | XS9-21187_ |
| Kawasaki | KDX220R | 97-05 | 18x2.15 | 36H | Rear | FEK610 | NO | XS9-21187_ |
| Kawasaki | KX250 | 89-02 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-21187_ |
| Kawasaki | KX250 | 89-02 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-21197_ |
| Kawasaki | KX250 | 89-02 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-21197_ |
| Kawasaki | KX250 | 03-07 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KX250 | 03-07 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KX250 | 03-07 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KX250 | 19-24 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KX250 | 19-24 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KX250 | 19-24 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KX250F | 04-24 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KX250F | 04-24 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KX250F | 04-24 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KX250X | 21-24 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KX250X | 21-24 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KX250X | 21-24 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KDX250 | 91-94 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-21187_ |
| Kawasaki | KDX250 | 91-94 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-21197_ |
| Kawasaki | KDX250 | 91-94 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-21197_ |
| Kawasaki | KLX250R | 94-96 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-22187_ |
| Kawasaki | KLX300R | 97-07 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-22187_ |
| Kawasaki | KLX400R | 03-04 | 18x2.15 | 36H | Rear | FEK610 | YES | XS8-31187_ |
| Kawasaki | KLX400SR | 03-04 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-32187_ |
| Kawasaki | KX450 | 19-24 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KX450 | 19-24 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KX450 | 19-24 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KX450F | 06-18 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KX450F | 06-18 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KX450F | 06-18 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KX450X | 21-24 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KX450X | 21-24 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KX450X | 21-24 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KLX450R | 08-09, 18-24 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Kawasaki | KLX450R | 08-09, 18-24 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-23197_ |
| Kawasaki | KLX450R | 08-09, 18-24 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-23197_ |
| Kawasaki | KX500 | 89-04 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-21187_ |
| Kawasaki | KX500 | 89-04 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-21197_ |
| Kawasaki | KX500 | 89-04 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-21197_ |
| Kawasaki | KLX650R | 93-96 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-22187_ |
| Suzuki | RM125 | 97-00 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-31217_ |
| Suzuki | RM125 | 86-96 & 01-08 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Suzuki | RM250 | 97-00 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-31217_ |
| Suzuki | RM250 | 86-96 & 01-08 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Suzuki | RMZ250 | 04-06 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-21217_ |
| Suzuki | RMZ250 | 07-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-32217_ |
| Suzuki | RMX250 | 89-98 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Suzuki | DRZ250 | 01-07 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Suzuki | DR350 | 97-99 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Suzuki | DRZ400 | 00-04 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-31217_ |
| Suzuki | DRZ400E | 00-07 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-31217_ |
| Suzuki | DRZ400S | 00-09 & 11-20 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-31217_ |
| Suzuki | RMX450Z | 10-11, 17-19 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-32217_ |
| Suzuki | RMZ450 | 05-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-32217_ |
| Suzuki | RM125 | 88-08 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-31187_ |
| Suzuki | RM125 | 88-08 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-31197_ |
| Suzuki | RM125 | 88-08 | 19X2.15 | 36H | Rear | GEK610 | YES | XS8-31197_ |
| Suzuki | RM250 | 88-08 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-31187_ |
| Suzuki | RM250 | 88-08 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-31197_ |
| Suzuki | RM250 | 88-08 | 19X2.15 | 36H | Rear | GEK610 | YES | XS8-31197_ |
| Suzuki | RMZ250 | 04-06 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-25187_ |
| Suzuki | RMZ250 | 04-06 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-23197_ |
| Suzuki | RMZ250 | 04-06 | 19x2.15 | 36H | Rear | GEK610 | YES | XS8-23197_ |
| Suzuki | RMZ250 | 07-24 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-34187_ |
| Suzuki | RMZ250 | 07-24 | 19x1.85 | 36H | Rear | GDK622 | YES | XS8-33197_ |
| Suzuki | RMZ250 | 07-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-33197_ |
| Suzuki | RMX250 | 89-98 | 18x2.15 | 36H | Rear | FEK610 | YES | XS8-31187_ |
| Suzuki | RMX250 | 89-98 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-31197_ |
| Suzuki | RMX250 | 89-98 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-31197_ |
| Suzuki | DRZ400 | 00-04 | 18x2.15 | 36H | Rear | FEK610 | YES | XS8-31187_ |
| Suzuki | DRZ400 | 00-04 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-31197_ |
| Suzuki | DRZ400 | 00-04 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-31197_ |
| Suzuki | DRZ400E | 00-07 | 18x2.15 | 36H | Rear | FEK610 | YES | XS8-31187_ |
| Suzuki | DRZ400E | 00-07 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-31197_ |
| Suzuki | DRZ400E | 00-07 | 19X2.15 | 36H | Rear | GEK610 | NO | XS8-31197_ |
| Suzuki | DRZ400S | 00-09 & 11-20 | 18x2.15 | 36H | Rear | FEK610 | NO | XS8-32187_ |
| Suzuki | RMX450Z | 10-11, 17-19 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-34187_ |
| Suzuki | RMX450Z | 10-11, 17-19 | 19x1.85 | 36H | Rear | GDK622 | YES | XS8-33197_ |
| Suzuki | RMX450Z | 10-11, 17-19 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-33197_ |
| Suzuki | RMZ450 | 05-24 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-34187_ |
| Suzuki | RMZ450 | 05-24 | 19x1.85 | 36H | Rear | GDK622 | YES | XS8-33197_ |
| Suzuki | RMZ450 | 05-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-33197_ |
| Yamaha | YZ125 | 92-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ125X | 20-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ250 | 91-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ250F | 01-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ250FX | 15-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ250X | 16-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | WR250 | 92-97 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | WR250F (won't fit WR250R) | 01-09, 11-13, 15-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ400F | 98-99 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | WR400F | 98-00 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ426F | 00-02 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | WR426F | 01-02 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ450F | 03-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ450FX | 16-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | WR450F | 03-09, 11-24 | 21x1.60 | 36H | Front | ICK608 | NO | XS9-11207_ |
| Yamaha | YZ125 | 89-98 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-41187 (Discontinued) |
| Yamaha | YZ125 | 89-98 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-42197_ |
| Yamaha | YZ125 | 89-98 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-42197_ |
| Yamaha | YZ125 | 99-24 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ125 | 99-24 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ125 | 99-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | YZ125X | 20-24 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ125X | 20-24 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ125X | 20-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | YZ250 | 89-98 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-41187 (Discontinued) |
| Yamaha | YZ250 | 89-98 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-42197_ |
| Yamaha | YZ250 | 89-98 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-42197_ |
| Yamaha | YZ250 | 99-24 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ250 | 99-24 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ250 | 99-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | YZ250F | 01-08 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ250F | 01-08 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ250F | 01-08 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | YZ250F | 09-21 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-47187_ |
| Yamaha | YZ250F | 09-21 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-47197_ |
| Yamaha | YZ250F | 09-21 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-47197_ |
| Yamaha | YZ250F | 22-24 | 19x2.15 | 36H | Rear | GEK606 | NA | XS8-48197 |
| Yamaha | YZ250FX | 15-21 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ250FX | 15-21 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ250FX | 15-21 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | YZ250X | 16-24 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ250X | 16-24 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ250X | 16-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | TTR250 | 99-06 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-41187 (Discontinued) |
| Yamaha | TTR250 | 99-06 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-42197_ |
| Yamaha | TTR250 | 99-06 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-42197_ |
| Yamaha | WR250 | 91-97 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-41187 (Discontinued) |
| Yamaha | WR250 | 91-97 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-42197_ |
| Yamaha | WR250 | 91-97 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-42197_ |
| Yamaha | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-43187_ |
| Yamaha | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-41197_ |
| Yamaha | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-41197_ |
| Yamaha | YZ400F | 98 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-41187 (Discontinued) |
| Yamaha | YZ400F | 98 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-42197_ |
| Yamaha | YZ400F | 98 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-42197_ |
| Yamaha | YZ400F | 99 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ400F | 99 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ400F | 99 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | WR400F | 98 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-41187 (Discontinued) |
| Yamaha | WR400F | 98 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-42197_ |
| Yamaha | WR400F | 98 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-42197_ |
| Yamaha | WR400F | 99-00 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-43187_ |
| Yamaha | WR400F | 99-00 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-41197_ |
| Yamaha | WR400F | 99-00 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-41197_ |
| Yamaha | YZ426F | 00-02 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ426F | 00-02 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ426F | 00-02 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | WR426F | 01-02 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-43187_ |
| Yamaha | WR426F | 01-02 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-41197_ |
| Yamaha | WR426F | 01-02 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-41197_ |
| Yamaha | YZ450F | 03-08 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ450F | 03-08 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ450F | 03-08 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | YZ450F | 09-21 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-47187_ |
| Yamaha | YZ450F | 09-21 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-47197_ |
| Yamaha | YZ450F | 09-21 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-47197_ |
| Yamaha | YZ450F | 22-24 | 19x2.15 | 36H | Rear | GEK606 | NA | XS8-48197 |
| Yamaha | YZ450FX | 16-24 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-43187_ |
| Yamaha | YZ450FX | 16-24 | 19x1.85 | 36H | Rear | GDK606 | YES | XS8-41197_ |
| Yamaha | YZ450FX | 16-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-41197_ |
| Yamaha | WR450F | 03-09, 11-21 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-43187_ |
| Yamaha | WR450F | 03-09, 11-21 | 19x1.85 | 36H | Rear | GDK606 | NO | XS8-41197_ |
| Yamaha | WR450F | 03-09, 11-21 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-41197_ |
| KTM | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-51217_ |
| KTM | All SX 125-530 | 07-24 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-52217_ |
| KTM | Most Non-SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-51217_ |
| KTM | All Non-SX 125-530 (Does NOT include adventure & Super Enduro models) | 07-24 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-52217_ |
| KTM | All Full Size Off-Road / Dual Sport Models (Except Adventure, Super Enduro & Street Models) 125-530 | 07-24 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-52217_ |
| KTM | Most Non SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-51187_ |
| KTM | Most Non SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 19x1.85 | 36H | Rear | GDK622 | NO | XS8-51197_ |
| KTM | Most Non SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 19x2.15 | 36H | Rear | GEK622 | NO | XS8-51197_ |
| KTM | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 18x2.15 | 36H | Rear | FEK622 | NO | XS8-51187_ |
| KTM | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 19x1.85 | 36H | Rear | GDK622 | YES | XS8-51197_ |
| KTM | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-51197_ |
| KTM | All Full Size Models 125-530 (If 18x2.15 is the stock size) *Does not fit adventure & Super Enduro models | 07-24 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-52187_ |
| KTM | All Full Size Models 125-530 (If 19x1.85 is the stock size) *Does not fit adventure & Super Enduro models | 07-24 | 19x1.85 | 36H | Rear | GDK622 | YES | XS8-52197 |
| KTM | All Full Size Models 125-530 (If 19x2.15 is the stock size) *Does not fit adventure & Super Enduro models | 07-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-52197 |
| KTM | All Full Size Off-Road / Dual Sport Models (Except Adventure, Super Enduro & Street Models) 125-530 | 07-24 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-52187_ |
| KTM | All Full Size Off-Road / Dual Sport Models (Except Adventure, Super Enduro & Street Models) 125-530 | 07-24 | 19x1.85 | 36H | Rear | GDK622 | YES | XS8-52197_ |
| KTM | All Full Size Off-Road / Dual Sport Models (Except Adventure, Super Enduro & Street Models) 125-530 | 07-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-52197_ |
| Gas | Most EC Models | 20-24 | 21x1.60 | 36H | Front | ICK608 | NA | XS9-52217_ |
| Gas | Most EC Models | 20-24 | 18x2.15 | 36H | Rear | FEK622 | NA | XS8-52187_ |
| Gas | Most EC Models | 20-24 | 19x2.15 | 36H | Rear | GEK622 | NA | XS8-52197_ |
| Husqv | All FULL SIZE Models (Except WR250/300 11-13, TE630 2011) | 11-13 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-52217_ |
| Husqv | ALL FULL SIZE Models | 14-24 | 21x1.60 | 36H | Front | ICK608 | YES | XS9-52217_ |
| Husqv | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-52187_ |
| Husqv | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 19X1.85 | 36H | Rear | GDK622 | YES | XS8-52197 |
| Husqv | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-52197 |
| Husqv | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 18x2.15 | 36H | Rear | FEK622 | YES | XS8-52187_ |
| Husqv | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 19x1.85 | 36H | Rear | GDK622 | YES | XS8-52197 |
| Husqv | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 19x2.15 | 36H | Rear | GEK622 | YES | XS8-52197 |
Excel Rim Application Chart for AFTERMARKET Hubs
Use the below charts to find the suggested replacement rim part number for an aftermarket (non-stock) hub.
DUBYA EDGE
FASTER HUBS
HAAN HUBS
KITE HUBS
TALON HUBS
TUSK HUBS
MOOSE HUBS
DUBYA EDGE
FASTER HUBS
If your bike is running Faster Hubs, then use the below chart to find your replacement rims specific to your Faster Hubs.
For A60 rims change the “4” in the part number to a “6” All A60 rims are black so part would be ICK608 for a front rim etc.
HAAN HUBS
If your bike is running HAAN Hubs, then use the below chart to find your replacement rims specific to your HAAN Hubs.
For A60 rims change the “4” in the part number to a “6” All A60 rims are black so part would be ICK608 for a front rim etc.

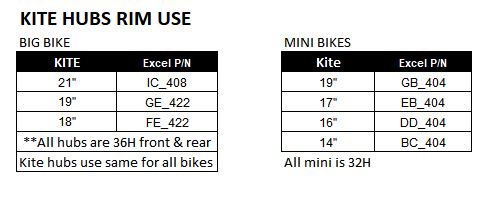

KITE HUBS
If your bike is running KITE Hubs, then use the below chart to find your replacement rims specific to your KITE Hubs. The Preferred rim part number is a 422 drill pattern. 410 drill patterns may need a custom spoke.
For A60 rims change the “4” in the part number to a “6” All A60 rims are black so part would be ICK608 for a front rim etc.
TALON HUBS
If your bike is running TALON Hubs, then use the below chart to find your replacement rims specific to your TALON Hubs.
For A60 rims change the “4” in the part number to a “6” All A60 rims are black so part would be ICK608 for a front rim etc.
TUSK HUBS
Tusk hubs follow OE drill patterns so the above chart for stock hubs will be compatible with your Tusk hub for your make, model and year.
MOOSE HUBS
MOOSE hubs follow OE drill patterns so the above chart for stock hubs will be compatible with your MOOSE hub for your make, model and year.
Click here for Moose Racing Website.
