520MXZ5 Racing Chain
TECH SPECS
520MXZ5 Supercross Racing Chain
- Tensile Strength: 8,500 lbs
- Max CC Rating: 500cc
- MAX Horsepower: 70 HP
- Weight: 3.06 lbs
- Connecting Link: Clip *Rivet available separately
- Max Chain Width:19.3mm
- NOT RECOMMENDED FOR STREET USE
- GB520MXZ5-120 $103.74
2024 TEAMS USING GB520MXZ5 CHAINS
- Triumph Factory Racing
- Rockstar Energy Husqvarna Factory Racing SX/MX
- Monster Energy Pro Circuit Kawasaki
As used by RJ Hampshire winner of 2024 250SX West Championship!
RK MXZ5 Racing Chains
RK’s NEW MXZ5 Supercross Racing chains are made for the serious supercross and motocross racer. MXZ5 chains feature chromoly steel construction with seamless rollers and bushing. RK’s reinforced Chromized pins drastically improve the wear resistance more than two times compared to normal non-sealed chains while absorbing shock loads from extreme jumps. All components are heat treated using RK’s exclusive HIT (Heat Induction Transfer) process. 520MXZ5 has a maximum tensile strength rated at 8,500 lbs and is suitable for professional level 125cc to 500cc class racing. MXZ5 has a higher tensile strength and higher rigidity than its predecessor MXZ4 chain. 520MXZ5 will also come with a new less tacky grease which is less likely to attract dirt and debris.

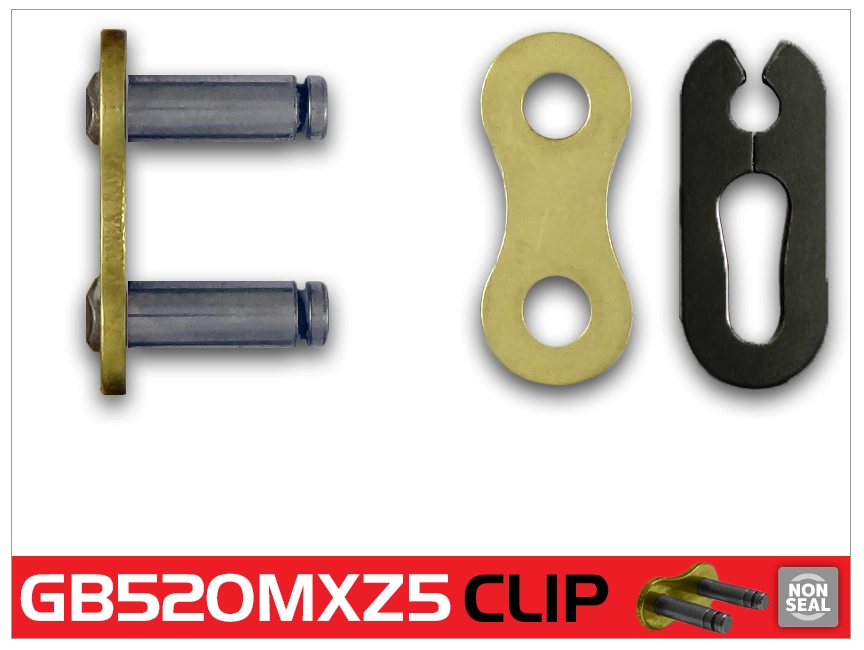

Please note that MXZ5 and MXZ4 connecting links are NOT interchangeable! You must use MXZ5 connecting links on MXZ5 chains and MXZ4 connecting links on MXZ4 chains.
