EXCEL TOOLS - Adjustable Spoke Torque Wrench and Excel Triangle

Part #
TWS-210AH
Part# TWT210A
Part# TWW-001
Be sure to reset the tool back to zero before placing in storage box.
Head Sizes Range from 5.1mm to 7.2mm
Previous
Next

Excel Spoke Torque Wrench

Excel Tools take the guesswork out of wheel building and truing with the Excel Adjustable Spoke Torque Wrench. The Excel Torque Wrench is easily adjustable with a range of 15 to 60 inch lbs. TWS-210ANS Comes with four common square type heads and one Spline Drive Head. The image shown is part number TWS-210AH which comes with a wrench handle.

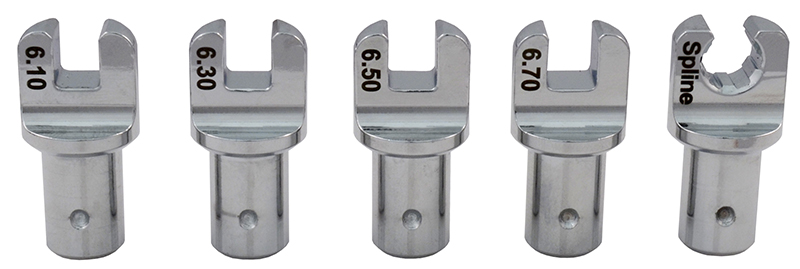

Additional and replacement heads are available in sizes ranging from 5.1mm to 7.2mm.

Harley Davidson only kits also available.

Download tool instructions below.

PART NO.DESCRIPTIONDESCRIPTION CONT.RTL
TWS-210AC TORQUE WRENCH SET, 10pc w/BoxSpline,5.1, 5.8,6.1,6.3,6.5,6.7, 6.9, TWW179.95
TWS-210AH TORQUE WRENCH SET, 7pc w/BoxSpline,6.1,6.3,6.5,6.7 TWW159.95
TWS-210ANS TORQUE WRENCH SET, 6pc w/BoxSpline,6.1,6.3,6.5,6.7149.95
TWS-210DH TORQUE WRENCH SET, 3pc w/Box6.1, TWW129.95
TWS-210D TORQUE WRENCH SET, 2pc w/ Box6.1119.95
TWT-210A TORQUE WRENCH129.95
REPLACEMENT PARTS
TWB-210TORQUE WRENCH BOX12.2515
TWH-006TORQUE WRENCH HEADSpline Drive 6 point17.0665
TWH-051TORQUE WRENCH HEAD5.1 MM13.3215
TWH-058TORQUE WRENCH HEAD5.8 MM13.3215
TWH-061TORQUE WRENCH HEAD6.1 MM13.3215
TWH-063TORQUE WRENCH HEAD6.3 MM13.3215
TWH-065TORQUE WRENCH HEAD6.5 MM13.3215
TWH-067TORQUE WRENCH HEAD6.7 MM13.3215
TWH-069TORQUE WRENCH HEAD6.9 MM13.3215
TWH-072TORQUE WRENCH HEAD7.2 MM13.3215
TWW-001SPOKE WRENCH HANDLEHandle only17.95

Need help finding your nipple head size? Use the button below.

EXCEL PRO SERIES TRIANGLE

Previous
Next

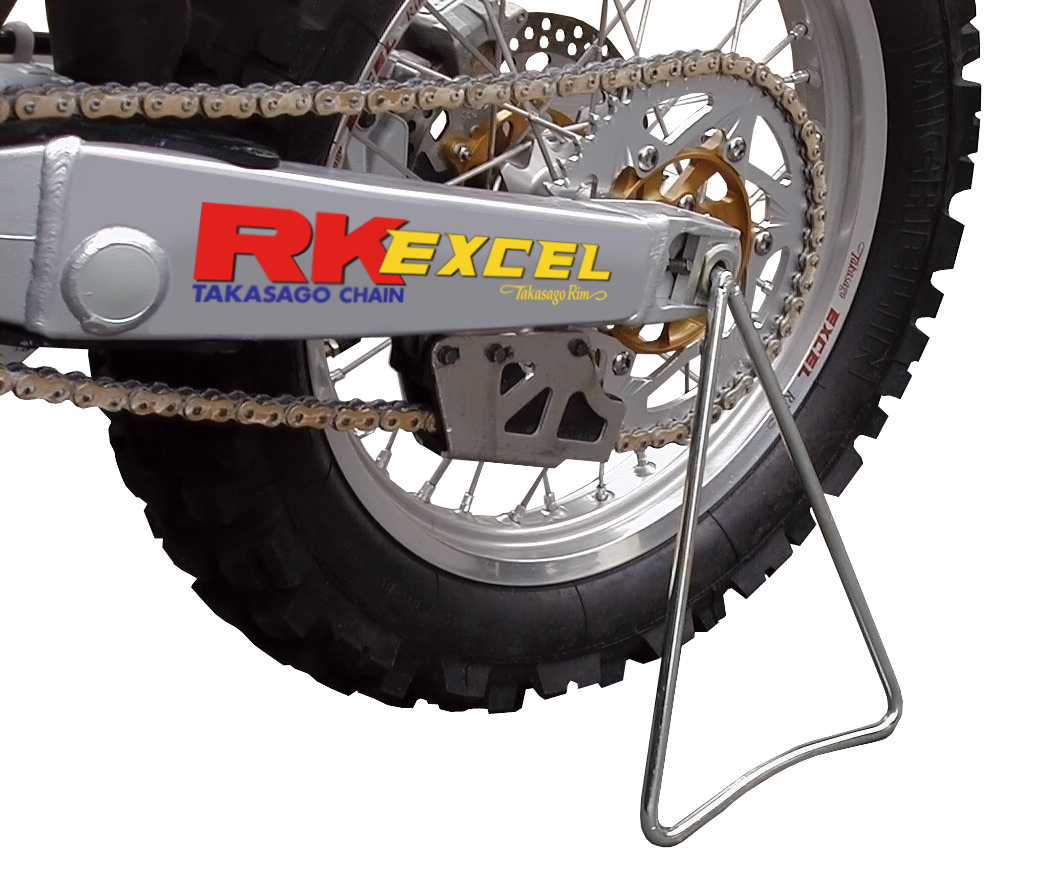

Excel Pro Series Triangle

The most affordable quick, easy and space saving motorcycle stand on the market. Constructed from heavy-duty steel, then zinc coated to prevent rust and corrosion. The welded tip will fit any bike from 80cc mini bikes to 500cc ground pounders.

Part Number PST-004
Suggested Retail: $16.49

Excel Nipple Head Sizes

Make:YearFront Size mmFront Wrench Part No.Rear Size mmRear Wrench Part No.
Honda
CR80,85R & RB96-075.6-5.7TWH-0585.6-5.7TWH-058
CR125,250,500Pre 20026TWH-0616.2-6.3TWH-063
CR125R, CR250R2002-20076TWH-0616.4-6.48TWH-065
CRF50F2004-20165.1TWH-0515.1TWH-051
CRF250R / CRF450R04-17 / 02-186TWH-0616.4-6.48TWH-065
CRF250X / CRF450X / CRF450RX04-09, 12-13, 15-17 / 05-09, 12-17 / 17-186TWH-0616.4-6.48TWH-065
CRF150F03-09, 12-175.6-5.75.6-5.7
CRF150R07-09, 12-195.67TWH-0585.7TWH-058
CRF150RB (Expert)07-09, 12-195.67TWH-0585.7TWH-058
CRF230F03-09, 12-17, 195.6-5.7TWH-0585.6-5.7TWH-058
XR50R00-035.1TWH-0515.1TWH-051
XR70R97-035.1TWH-0515.1TWH-051
XR80R95-035.1TWH-0515.1TWH-051
XR100R94-034.9-5.1TWH-0514.9-5.1TWH-051
XR200R95-025.9-6.0TWH-0615.9-6.0TWH-061
XR250R97-045.9-6.0TWH-0615.9-6.0TWH-061
XR400R96-045.9-6.0TWH-0615.9-6.0TWH-061
XR600R93-035.9-6.0TWH-0615.9-6.0TWH-061
XR650R00-075.9-6.0TWH-0615.9-6.0TWH-061
XR650L95-09, 12-19NANANANA
Gas Gas
450FSE2002-20075.9-6.0TWH-0616.2-6.3TWH-063
Husqvarna
All Full Size Models00-035.6-5.7TWH-0585.9-6.0TWH-061
Kawasaki
KX6085-034.9-5.0TWH-0514.9-5.0TWH-051
KX6500-09, 11-194.9-5.0TWH-0514.9-5.0TWH-051
KX8098-005.9-6.0TWH-0615.9-6.0TWH-061
KX852001-20195.9-6.0TWH-0615.9-6.0TWH-061
KX10098-09, 11-195.9-6.0TWH-0615.9-6.0TWH-061
KLX110/L02-19 / 10-194.9-5.0TWH-0514.9-5.0TWH-051
KLX140/L/G08-09, 11-19 / 17-195.86-5.88TWH-0615.86-5.88TWH-061
KX125,25095-985.9-6.0TWH-0616.2-6.3TWH-063
KX125/250/250F/450F99-05 / 99-07 / 04-19 / 06-196.63-6.7TWH-0676.63-6.7TWH-067
KDX20093-065.9TWH-0615.9TWH-061
KDX22097-055.9TWH-0615.9TWH-061
KLX25094-965.9TWH-0615.9TWH-061
KLX300R97-075.9TWH-0615.9TWH-061
KLX400R2003-20046.2-6.3TWH-0636.63-6.7TWH-067
KLX450R2008-20096.63-6.7TWH-0676.63-6.7TWH-067
KX50089-045.9-6.0TWH-0616.2-6.3TWH-063
KTM
125-530 (Full size off road models)95-166.84TWH-0696.84TWH-069
Suzuki
RM6020034.9-5.0TWH-0514.9-5.0TWH-051
RM652003-20054.9-5.0TWH-0514.9-5.0TWH-051
DR-Z7008-09, 15-17NANANANA
RM8095-014.9-5.0TWH-0514.9-5.0TWH-051
RM8502-10, 12, 15-174.9-5.0TWH-0514.9-5.0TWH-051
RM85L03-10, 124.9-5.0TWH-0514.9-5.0TWH-051
RM10020035.9-6.0TWH-0615.9-6.0TWH-061
DR-Z1102003-20054.9-5.0TWH-0514.9-5.0TWH-051
RM12593-086.2-6.3TWH-0636.63-6.7TWH-067
RM25093-086.2-6.3TWH-0636.63-6.7TWH-067
RM-Z2502004-20066.63-6.7TWH-0676.63-6.7TWH-067
RM-Z2502007-20176.2-6.3TWH-0636.63-6.7TWH-067
DRZ2502001-20036.2-6.3TWH-0636.63-6.7TWH-067
RM-Z4502005-20186.2-6.3TWH-0636.63-6.7TWH-067
RMX450Z10-11, 176.2-6.3TWH-0636.63-6.7TWH-067
DR-Z400,E00-076.2-6.3TWH-0636.63-6.7TWH-067
DR-Z400S00-09, 11-176.2-6.3TWH-0636.63-6.7TWH-067
Yamaha
TTR50E06-09, 12-17NANANANA
TTR110E08-09, 11-16NANANANA
YZ80,8594-185.6-5.7TWH-0585.6-5.7TWH-058
YZ125,250,400FPre 19995.9-6.0TWH-0616.2-6.3TWH-063
YZ125,25099-196.20-6.25TWH-0636.63-6.7TWH-067
YZ250F / 400F / 426F / 450F01-19 / 99 / 00-02 / 03-196.20-6.25TWH-0636.63-6.7TWH-067
YZ250X16-196.20-6.25TWH-0636.63-6.7TWH-067
YZ250FX15-196.20-6.25TWH-0636.63-6.7TWH-067
YZ450FX16-196.20-6.25TWH-0636.63-6.7TWH-067
TTR25099-035.6-5.7TWH-0585.9-6.0TWH-061
WR250F / 400F / 426F / 450F01-09, 11-13, 15-18 / 98-00 / 01-02 / 03-09, 11-186.20-6.25TWH-0636.63-6.7TWH-067
Excel Nipples # N16.18-6.19TWH-063
Excel Nipples # N26.58-6.59TWH-067
* Spline Drive 6 point (SDN-S8 & SDN-S9)TWH-006TWH-006
Notako Spoke Nipples6.66TWH-0676.66TWH-067
