EXCEL SPOKES
Excel Spoke Kits
Excel Motorcycle Spokes

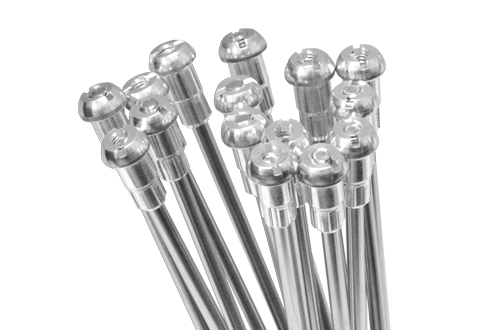

Excel’s 302x polished stainless steel spoke kits are 10% stronger than OE steel spokes and 15% stronger than current aftermarket stainless spokes. Excel Motorcycle Spoke Kits include 6061 T4 6 point forged aluminum Spline Drive® Nipples. NEW! BLUE, RED and BLACK NIPPLES!
- 302x Polished Stainless Steel Spokes
- Stronger than OE or current aftermarket
- Features Spline Drive® Aluminum Nipples
- 8 and 9 gauge
- Mini bike kits also available
- Replacement nipples and spokes available.
Please note that these spoke kits are meant to be laced to stock hubs. If you need replacement spokes for Excel Pro Series Hubs please contact us.
See application chart below.
Match your Excel Spoke Kits with Excel Takasago or Excel A60 Rims. Click Here
Excel One Spoke Kits
Excel One Spoke Kits
Excel One Spoke Kits were developed for enthusiasts looking for an excellent value for the money. Excel One Spokes are produced using economical high carbon steel and are mated to OE type square steel nipples to give Excel One not only an economical price but also to conform to the performance that Excel represents.
See the application chart below
Match your Excel One Spoke Kits with Excel One Rims. Click Here
Excel Rim and Spoke Application Chart
NOTE: The spoke kits listed below are meant to be laced to stock hubs. NOTE: This chart might not show up on some mobile devices.
Make | Model | Year | Rim Size | Hole Count | Front or Rear | Excel Takasago | OEM Spoke, Nipple OK | Excel Spoke Set _= Color Designator |
---|---|---|---|---|---|---|---|---|
HONDA Front | CRF50F (Larger gauge spokes. Hub must be drilled) | 04-09, 11-Current | 12x1.60 Optional size | 28H | Front | AC_408 | NO | XS0-11127_ DISCONTINUED |
HONDA Front | XR50R (Larger gauge spokes. Hub must be drilled) | 00-03 | 12x1.60 Optional size | 28H | Front | AC_408 | NO | XS0-11127_ DISCONTINUED |
HONDA Front | CRF70 *Special order undrilled rim only. 10pcs MOQ | 03-10, 2019 | 14x1.40 | 32H | Front | BC_402U** | NA | NA |
HONDA Front | CR80R | 86-02 | 17x1.40 | 28H | Front | EB_406 | NO | XS0-11177_ |
HONDA Front | CR80R | 86-02 | 19x1.40 | 28H | Front | GB_405 | NO | XS0-11197_ |
HONDA Front | CR85R | 03-24 | 17x1.40 | 28H | Front | EB_406 | NO | XS0-11177_ |
HONDA Front | CR85R | 03-24 | 19x1.40 | 28H | Front | GB_405 | NO | XS0-11197_ |
HONDA Front | CR80RB | 96-02 | 17x1.40 | 28H | Front | EB_406 | NO | XS0-11177_ |
HONDA Front | CR80RB | 96-02 | 19x1.40 | 28H | Front | GB_405 | NO | XS0-11197_ |
HONDA Front | CR85RB | 03-07 | 17x1.40 | 28H | Front | EB_406 | NO | XS0-11177_ |
HONDA Front | CR85RB | 03-07 | 19x1.40 | 28H | Front | GB_405 | NO | XS0-11197_ |
HONDA Front | CRF110F *Stock size is 14x1.40 | 13-25 | 14x1.60 | 36H | Front | BC_417 | YES | NA |
HONDA Front | CR125R | 95-07 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF150R | 07-09, 12-25 | 17x1.40 | 28H | Front | EB_406 | NO | XS0-12177_ |
HONDA Front | CRF150R (Optional) | 07-09, 12-25 | 17x2.50 Optional Size | 28H | Front | EF_417 | NO | XS0-13177_ |
HONDA Front | CRF150RB (Optional) | 07-09, 12-25 | 17x2.50 Optional Size | 28H | Front | EF_417 | NO | XS0-13177_ |
HONDA Front | CRF150RB (Big Wheel) | 07-09, 12-25 | 19x1.40 | 28H | Front | GB_405 | NO | XS0-13197_ |
HONDA Front | CRF230F | 03-09, 12-25 | 21x1.60 | 36H | Front | IC_411 | YES | XS0-11217_ |
HONDA Front | CR250R | 95-07 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF250L | 2020 | 21x1.60 | 36H | Front | IC_411 | NA | NA |
HONDA Front | CRF250F (No Rear rim drill pattern available) | 21-25 | 21x1.60 | 36H | Front | IC_411 | NA | NA |
HONDA Front | CRF250R | 04-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF250RX | 19-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF250X | 04-09, 12-13, 15-18 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | XR250R | 90-04 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-12217_ |
HONDA Front | XR400R | 96-04 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-12217_ |
HONDA Front | CRF450R | 02-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF450X | 05-09, 12-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF450RX | 17-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF450L | 19-20 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF450RL | 21-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CRF450WE (Works Edition) | 2020-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | CR500R | 95-01 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11217_ |
HONDA Front | XR600R | 88-00 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-12217_ |
HONDA Front | XR650R | 00-07 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-12217_ |
HONDA Front | XR650L (32 Hole Rim) | 93-09, 12-19 | 21x1.60 | 32H | Front | IC_412N | * YES | NA |
HONDA Front | CRF1000L / LD Africa Twin (No Rear Rim Available) | 17-18 | 21x2.15 | 36H | Front | IE_408 | NA | NA |
HONDA Rear | CRF70 *No predrilled Front Rim available | 2019 | 12x1.60 | 36H | Rear | AC_411 | NA | NA |
HONDA Rear | CR80R | 86-91 | 14x1.60 | 32H | Rear | BC_405 | YES | NA |
HONDA Rear | CR80R | 92-02 | 14x1.60 | 32H | Rear | BC_405 | YES | XS0-11147_ |
HONDA Rear | CR80R | 92-02 | 16x1.85 | 32H | Rear | DD_405 | NO | XS0-11167_ |
HONDA Rear | CR80RB (Big Wheel) | 96-02 | 14x1.60 | 32H | Rear | BC_405 | NO | XS0-11147_ |
HONDA Rear | CR80RB (Big Wheel) | 96-02 | 16x1.85 | 32H | Rear | DD_405 | YES | XS0-11167_ |
HONDA Rear | CR85R | 03-07 | 14x1.60 | 32H | Rear | BC_405 | YES | XS0-11147_ |
HONDA Rear | CR85R | 03-07 | 16x1.85 | 32H | Rear | DD_405 | NO | XS0-11167_ |
HONDA Rear | CR85RB (Big Wheel) | 03-07 | 14x1.60 | 32H | Rear | BC_405 | NO | XS0-11147_ |
HONDA Rear | CR85RB (Big Wheel) | 03-07 | 16x1.85 | 32H | Rear | DD_405 | YES | XS0-11167_ |
HONDA Rear | CRF110F | 13-25 | 12x1.60 | 36H | Rear | AC_411 | YES | NA |
HONDA Rear | CRF150F | 03-09, 12-18 | 16x1.60 | 36H | Rear | DC_411 | YES | XS0-12167_ |
HONDA Rear | CRF150R | 07-09, 12-25 | 14x1.60 | 32H | Rear | BC_404 | NO | XS0-12147_ |
HONDA Rear | CRF150R (Optional) | 07-09, 12-25 | 17x3.50 Optional Size | 32H | Rear | EI_417 | NO | XS0-14177_ |
HONDA Rear | CRF150RB (Big Wheel) | 07-09, 12-25 | 16x1.85 | 32H | Rear | DD_404 | NO | XS0-13167_ |
HONDA Rear | CRF150RB (Optional) | 07-09, 12-25 | 17x3.50 Optional Size | 32H | Rear | EI_417 | NO | XS0-14177_ |
HONDA Rear | CRF230F | 03-09, 12-19 | 18x1.85 | 36H | Rear | FD_416 | YES | XS0-11187_ |
HONDA Rear | CR125R | 89-01 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-11187_ |
HONDA Rear | CR125R | 89-01 | 18x2.50 | 32H | Rear | FF_412 | NO | NA |
HONDA Rear | CR125R | 89-01 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-11197_ |
HONDA Rear | CR125R | 89-01 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-11197_ |
HONDA Rear | CR125R | 02-04 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-13187_ |
HONDA Rear | CR125R | 02-04 | 18x2.50 | 32H | Rear | FF_412 | NO | XS8-14187_ Discontinued |
HONDA Rear | CR125R | 02-04 | 19x1.85 | 32H | Rear | GD_411 | YES | XS8-13197_ |
HONDA Rear | CR125R | 02-04 | 19x2.15 | 32H | Rear | GE_411 | YES | XS8-13197_ |
HONDA Rear | CR125R | 05-07 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-15187_ |
HONDA Rear | CR125R | 05-07 | 19x1.85 | 32H | Rear | GD_411 | YES | XS8-15197_ |
HONDA Rear | CR125R | 05-07 | 19x2.15 | 32H | Rear | GE_411 | YES | XS8-15197_ |
HONDA Rear | CR250R | 89-01 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-11187_ |
HONDA Rear | CR250R | 89-01 | 18x2.50 | 32H | Rear | FF_412 | NO | NA |
HONDA Rear | CR250R | 89-01 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-11197_ |
HONDA Rear | CR250R | 89-01 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-11197_ |
HONDA Rear | CR250R | 02-04 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-13187_ |
HONDA Rear | CR250R | 02-04 | 18x2.50 | 32H | Rear | FF_412 | NO | XS8-14187_ Discontinued |
HONDA Rear | CR250R | 02-04 | 19x1.85 | 32H | Rear | GD_411 | YES | XS8-13197_ |
HONDA Rear | CR250R | 02-04 | 19x2.15 | 32H | Rear | GE_411 | YES | XS8-13197_ |
HONDA Rear | CR250R | 05-07 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-15187_ |
HONDA Rear | CR250R | 05-07 | 19x1.85 | 32H | Rear | GD_411 | YES | XS8-15197_ |
HONDA Rear | CR250R | 05-07 | 19x2.15 | 32H | Rear | GE_411 | YES | XS8-15197_ |
HONDA Rear | CRF250R | 04 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-13187_ |
HONDA Rear | CRF250R | 04 | 18x2.50 | 32H | Rear | FF_412 | NO | XS8-14187_ Discontinued |
HONDA Rear | CRF250R | 04 | 19x1.85 | 32H | Rear | GD_411 | YES | XS8-13197_ |
HONDA Rear | CRF250R | 04 | 19x2.15 | 32H | Rear | GE_411 | YES | XS8-13197_ |
HONDA Rear | CRF250R | 05-24 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-15187_ |
HONDA Rear | CRF250R | 05-24 | 19x1.85 | 32H | Rear | GD_411 | YES | XS8-15197_ |
HONDA Rear | CRF250R | 05-24 | 19x2.15 | 32H | Rear | GE_411 | YES | XS8-15197_ |
HONDA Rear | CRF250X | 04-05 | 18x2.15 | 32H | Rear | FE_411 | YES | XS8-13187_ |
HONDA Rear | CRF250X | 04-05 | 18x2.50 | 32H | Rear | FF_412 | NO | XS8-14187_ Discontinued |
HONDA Rear | CRF250X | 04-05 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-13197_ |
HONDA Rear | CRF250X | 04-05 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-13197_ |
HONDA Rear | CRF250X | 06-09, 12-13, 15-18 | 18x2.15 | 32H | Rear | FE_411 | YES | XS8-15187_ |
HONDA Rear | CRF250X | 06-09, 12-13, 15-18 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-15197_ |
HONDA Rear | CRF250X | 06-09, 12-13, 15-18 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-15197_ |
HONDA Rear | CRF250RX (Rim Size will be Discontinued) | 19-25 | 18x1.85 | 32H | Rear | FD_417 | YES | XS8-15187_ |
HONDA Rear | CRF250RX | 19-25 | 18x2.15 | 32H | Rear | FE_411 | YES | XS8-15187_ |
HONDA Rear | CRF250RX | 19-25 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-15197_ |
HONDA Rear | CRF250RX | 19-25 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-15197_ |
HONDA Rear | XR250R (Rim is Directional - Must be installed a certain direction) - Stamping on left / drive side. | 90-04 | 18x2.15 | 32H | Rear | FE_418 | NO | XS9-11187_ |
HONDA Rear | XR250R (Rim is Directional - Must be installed a certain direction) | 90-04 | 18x2.50 | 32H | Rear | FF_418 | NO | XS9-12187_ |
HONDA Rear | XR400R (Rim is Directional - Must be installed a certain direction) - Stamping on left / drive side. | 96-04 | 18x2.15 | 32H | Rear | FE_418 | NO | XS9-11187_ |
HONDA Rear | XR400R (Rim is Directional - Must be installed a certain direction) | 96-04 | 18x2.50 | 32H | Rear | FF_418 | NO | XS9-12187_ |
HONDA Rear | CRF450R | 02-04 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-13187_ |
HONDA Rear | CRF450R | 02-04 | 18x2.50 | 32H | Rear | FF_412 | NO | XS8-14187_ Discontinued |
HONDA Rear | CRF450R | 02-04 | 19x1.85 | 32H | Rear | GD_411 | YES | XS8-13197_ |
HONDA Rear | CRF450R | 02-04 | 19x2.15 | 32H | Rear | GE_411 | YES | XS8-13197_ |
HONDA Rear | CRF450R | 05-25 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-15187_ |
HONDA Rear | CRF450R | 05-25 | 19x1.85 | 32H | Rear | GD_411 | YES | XS8-15197_ |
HONDA Rear | CRF450R | 05-25 | 19x2.15 | 32H | Rear | GE_411 | YES | XS8-15197_ |
HONDA Rear | CRF450X | 05-09, 12-25 | 18x2.15 | 32H | Rear | FE_411 | YES | XS8-15187_ |
HONDA Rear | CRF450X | 05-09, 12-25 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-15197_ |
HONDA Rear | CRF450X | 05-09, 12-25 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-15197_ |
HONDA Rear | CRF450RX | 17-24 | 18x2.15 | 32H | Rear | FE_411 | YES | XS8-15187_ |
HONDA Rear | CRF450RX | 17-24 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-15197_ |
HONDA Rear | CRF450RX | 17-24 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-15197_ |
HONDA Rear | CRF450L | 19-20 | 18x2.15 | 32H | Rear | FE_411 | YES | XS8-15187_ |
HONDA Rear | CRF450L | 19-20 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-15197_ |
HONDA Rear | CRF450L | 19-20 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-15197_ |
HONDA Rear | CRF450WE (Works Edition) | 2020-24 | 18x1.85 | 32H | Rear | FD_417 | NA | XS8-15187_ |
HONDA Rear | CRF450WE (Works Edition) | 2020-24 | 18x2.15 | 32H | Rear | FE_411 | NA | XS8-15187_ |
HONDA Rear | CRF450WE (Works Edition) | 2020-24 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-15197_ |
HONDA Rear | CRF450WE (Works Edition) | 2020-24 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-15197_ |
HONDA Rear | CRF450RL | 19-25 | 18x1.85 | 32H | Rear | FD_417 | YES | XS8-15187_ |
HONDA Rear | CRF450RL | 19-25 | 18x2.15 | 32H | Rear | FE_411 | YES | XS8-15187_ |
HONDA Rear | CRF450RL | 19-25 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-15197_ |
HONDA Rear | CRF450RL | 19-25 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-15197_ |
HONDA Rear | CR500R | 89-01 | 18x2.15 | 32H | Rear | FE_411 | NO | XS8-11187_ |
HONDA Rear | CR500R | 89-01 | 18x2.50 | 32H | Rear | FF_412 | NO | NA |
HONDA Rear | CR500R | 89-01 | 19x1.85 | 32H | Rear | GD_411 | NO | XS8-11197_ |
HONDA Rear | CR500R | 89-01 | 19x2.15 | 32H | Rear | GE_411 | NO | XS8-11197_ |
HONDA Rear | XR600R (Rim is Directional - Must be installed a certain direction) - Stamping on left / drive side. | 91-00 | 18x2.15 | 32H | Rear | FE_418 | NO | XS9-11187_ |
HONDA Rear | XR600R (Rim is Directional - Must be installed a certain direction) - Stamping on left / drive side. | 91-00 | 18x2.50 | 32H | Rear | FF_418 | NO | XS9-12187_ |
HONDA Rear | XR650R (Rim is Directional - Must be installed a certain direction) - Stamping on left / drive side. | 00-07 | 18x2.15 | 32H | Rear | FE_418 | NO | XS9-11187_ |
HONDA Rear | XR650R (Rim is Directional - Must be installed a certain direction) - Stamping on left / drive side. | 00-07 | 18x2.50 | 32H | Rear | FF_418 | NO | XS9-12187_ |
HONDA Rear | XR650L (Rim is Directional - Must be installed a certain direction) - Stamping on left / drive side. | 94-09, 12-19 | 18x2.15 | 32H | Rear | FE_418 | NO | XS9-11187_ |
HONDA Rear | XR650L (Rim is Directional - Must be installed a certain direction - Stamping on left / drive side. | 94-09, 12-19 | 18x2.50 | 32H | Rear | FF_418 | NO | XS9-12187_ |
Kawasaki Front | KX60 | 85-03 | 14x1.40 | 32H | Front | BB_431 | YES | XS0-21147_ |
Kawasaki Front | KX65 | 00-09, 11-24 | 14x1.40 | 28H | Front | BB_361 | YES | XS0-22147_ |
Kawasaki Front | KX80 | 98-00 | 17x1.40 | 28H | Front | EB_406 | YES | XS9-21177_ |
Kawasaki Front | KX80 | 98-00 | 19x1.40 | 28H | Front | GB_405 | NO | XS9-21197_ |
Kawasaki Front | KX85 | 01-24 | 17x1.40 | 28H | Front | EB_406 | YES | XS9-21177_ |
Kawasaki Front | KX85 | 01-24 | 19x1.40 | 28H | Front | GB_405 | NO | XS9-21197_ |
Kawasaki Front | KX100 | 98-09, 11-24 | 17x1.40 | 28H | Front | EB_406 | NO | XS9-21177_ |
Kawasaki Front | KX100 | 98-09, 11-24 | 19x1.40 | 28H | Front | GB_405 | YES | XS9-21197_ |
Kawasaki Front | KLX110/R | 02-24 | 14x1.40 | 32H | Front | BB_431 | YES | XS0-21147_ |
Kawasaki Front | KLX110L & RL | 10-24 | 14x1.40 | 32H | Front | BB_431 | YES | XS0-21147_ |
Kawasaki Front | KX112 | 22-24 | 19x1.40 | 28H | Front | GB_405 | NO | XS9-21197_ |
Kawasaki Front | KX125 | 89-98 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-21217_ |
Kawasaki Front | KX125 | 99-05 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-21217_ |
Kawasaki Front | KLX140 | 08-09, 11-24 | 17x1.40 | 28H | Front | EB_406 | YES | XS9-21177_ |
Kawasaki Front | KLX140 | 08-09, 11-24 | 19x1.40 | 28H | Front | GB_405 | NO | XS9-21197_ |
Kawasaki Front | KLX140L | 08-09, 11-24 | 17x1.40 | 28H | Front | EB_406 | NO | XS9-21177_ |
Kawasaki Front | KLX140L | 08-09, 11-24 | 19x1.40 | 28H | Front | GB_405 | YES | XS9-21197_ |
Kawasaki Front | KDX200 | 93-06 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KDX220R | 97-05 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KDX250 | 91-94 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KX250 | 89-98 & 05 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-21217_ |
Kawasaki Front | KX250 | 99-04 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-21217_ |
Kawasaki Front | KX250 | 06-07 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KX250 | 19-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KX250F | 04-05 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-21217_ |
Kawasaki Front | KX250F | 06-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KX250X | 21-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KLX250 | 18-20 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KLX250R | 94-96 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KLX250S | 06-14 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KLX300R | 97-07 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KLX300 *No Rear Rim is available | 2022 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Kawasaki Front | KLX400R | 03-04 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-31217_ |
Kawasaki Front | KLX400SR | 03-04 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-31217_ |
Kawasaki Front | KX450 | 19-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KX450F | 06-18 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KX450X | 21-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KLX450R | 08-09, 18-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Front | KX500 | 89-04 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-21217_ |
Kawasaki Front | KLR650 (can use any 408 pattern) No Rear Available | 2022 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Kawasaki Front | KLX650R | 93-96 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-22217_ |
Kawasaki Rear | KX60 | 85-03 | 12x1.60 | 32H | Rear | AC_431 | YES | XS0-21127_ |
Kawasaki Rear | KX65 | 00-09, 11-24 | 12x1.60 | 28H | Rear | AC_361 | YES | XS0-22127_ |
Kawasaki Rear | KX80 | 98-00 | 14x1.60 | 28H | Rear | BC_416 | YES | XS9-21147_ |
Kawasaki Rear | KX80 | 98-00 | 16x1.85 | 28H | Rear | DD_410 | NO | XS9-21167_ |
Kawasaki Rear | KX85 | 01-24 | 14x1.60 | 28H | Rear | BC_416 | YES | XS9-21147_ |
Kawasaki Rear | KX85 | 01-24 | 16x1.85 | 28H | Rear | DD_410 | NO | XS9-21167_ |
Kawasaki Rear | KX100 | 98-09, 11-24 | 14x1.60 | 28H | Rear | BC_416 | NO | XS9-21147_ |
Kawasaki Rear | KX100 | 98-09, 11-24 | 16x1.85 | 28H | Rear | DD_410 | YES | XS9-21167_ |
Kawasaki Rear | KLX110/R | 02-24 | 12x1.60 | 36H | Rear | AC_411 | YES | XS0-23127_ |
Kawasaki Rear | KLX110L & RL | 10-24 | 12x1.60 | 36H | Rear | AC_411 | YES | XS0-23127_ |
Kawasaki Rear | KX112 | 22-24 | 16x1.85 | 28H | Rear | DD_410 | NO | XS9-21167_ |
Kawasaki Rear | KX125 | 89-02 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-21187_ |
Kawasaki Rear | KX125 | 89-02 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-21187_ |
Kawasaki Rear | KX125 | 89-02 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-23187_Discontinued |
Kawasaki Rear | KX125 | 89-02 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-21197_ |
Kawasaki Rear | KX125 | 89-02 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-21197_ |
Kawasaki Rear | KX125 | 89-02 | 19x2.50 | 36H | Rear | GF_410 | NO | XS8-22197_Discontinued |
Kawasaki Rear | KX125 | 03-05 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KX125 | 03-05 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KX125 | 03-05 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KX125 | 03-05 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KLX140 | 08-09, 11-24 | 14x1.60 | 28H | Rear | BC_416 | YES | XS9-21147_ |
Kawasaki Rear | KLX140 | 08-09, 11-24 | 16x1.85 | 28H | Rear | DD_410 | NA | XS9-21167_ |
Kawasaki Rear | KLX140L | 08-09, 11-24 | 14x1.60 | 28H | Rear | BC_416 | NA | XS9-21147_ |
Kawasaki Rear | KLX140L | 08-09, 11-24 | 16x1.85 | 28H | Rear | DD_410 | NA | XS9-21167_ |
Kawasaki Rear | KDX200 | 89-06 | 18x1.85 | 36H | Rear | FD_406 | NO | XS9-21187_ |
Kawasaki Rear | KDX200 | 89-06 | 18x2.15 | 36H | Rear | FE_410 | NO | XS9-21187_ |
Kawasaki Rear | KDX220R | 97-05 | 18x1.85 | 36H | Rear | FD_406 | NO | XS9-21187_ |
Kawasaki Rear | KDX220R | 97-05 | 18x2.15 | 36H | Rear | FE_410 | NO | XS9-21187_ |
Kawasaki Rear | KX250 | 89-02 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-21187_ |
Kawasaki Rear | KX250 | 89-02 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-21187_ |
Kawasaki Rear | KX250 | 89-02 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-23187_Discontinued |
Kawasaki Rear | KX250 | 89-02 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-21197_ |
Kawasaki Rear | KX250 | 89-02 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-21197_ |
Kawasaki Rear | KX250 | 89-02 | 19x2.50 | 36H | Rear | GF_410 | NO | XS8-22197_Discontinued |
Kawasaki Rear | KX250 | 03-07 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KX250 | 03-07 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KX250 | 03-07 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KX250 | 03-07 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KX250 | 19-24 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KX250 | 19-24 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KX250 | 19-24 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KX250 | 19-24 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KX250F | 04-24 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KX250F | 04-24 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KX250F | 04-24 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KX250F | 04-24 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KX250X | 21-24 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KX250X | 21-24 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KX250X | 21-24 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KX250X | 21-24 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KDX250 | 91-94 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-21187_ |
Kawasaki Rear | KDX250 | 91-94 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-21187_ |
Kawasaki Rear | KDX250 | 91-94 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-23187_Discontinued |
Kawasaki Rear | KDX250 | 91-94 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-21197_ |
Kawasaki Rear | KDX250 | 91-94 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-21197_ |
Kawasaki Rear | KDX250 | 91-94 | 19x2.50 | 36H | Rear | GF_410 | NO | XS8-22197_Discontinued |
Kawasaki Rear | KLX250R | 94-96 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-22187_ |
Kawasaki Rear | KLX250R | 94-96 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-24187-OBJ (Discontinued) |
Kawasaki Rear | KLX250 | 18-20 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-22187_ |
Kawasaki Rear | KLX250 | 18-20 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-24187-OBJ (Discontinued) |
Kawasaki Rear | KLX250S | 06-14 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-22187_ |
Kawasaki Rear | KLX250S | 06-14 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-24187-OBJ (Discontinued) |
Kawasaki Rear | KLX300R | 97-07 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-22187_ |
Kawasaki Rear | KLX300R | 97-07 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-24187-OBJ (Discontinued) |
Kawasaki Rear | KLX400R | 03-04 | 18x2.15 | 36H | Rear | FE_410 | YES | XS8-31187_ |
Kawasaki Rear | KLX400SR | 03-04 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-32187_ |
Kawasaki Rear | KX450 | 19-24 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KX450 | 19-24 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KX450 | 19-24 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KX450 | 19-24 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KX450F | 06-18 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KX450F | 06-18 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KX450F | 06-18 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KX450F | 06-18 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KX450X | 21-24 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KX450X | 21-24 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KX450X | 21-24 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KX450X | 21-24 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KLX450R | 08-09, 18-24 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Kawasaki Rear | KLX450R | 08-09, 18-24 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Kawasaki Rear | KLX450R | 08-09, 18-24 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-23197_ |
Kawasaki Rear | KLX450R | 08-09, 18-24 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-23197_ |
Kawasaki Rear | KX500 | 89-04 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-21187_ |
Kawasaki Rear | KX500 | 89-04 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-21187_ |
Kawasaki Rear | KX500 | 89-04 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-23187_Discontinued |
Kawasaki Rear | KX500 | 89-04 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-21197_ |
Kawasaki Rear | KX500 | 89-04 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-21197_ |
Kawasaki Rear | KX500 | 89-04 | 19x2.50 | 36H | Rear | GF_410 | NO | XS8-22197_Discontinued |
Kawasaki Rear | KLX650R | 93-96 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-22187_ |
Kawasaki Rear | KLX650R | 93-96 | 18x2.50 | 36H | Rear | FF_410 | NO | XS8-24187-OBJ (Discontinued) |
Suzuki Front | RM60 | 2003 | 14x1.40 | 32H | Front | BB_431 | YES | XS0-21147_ |
Suzuki Front | RM65 | 03-05 | 14x1.40 | 28H | Front | BB_361 | YES | XS0-22147_ |
Suzuki Front | DRZ70 (Larger gauge spokes. Hub must be drilled) | 08-09, 15-17 | 12x1.60 Optional size | 28H | Front | AC_408 | NO | XS0-11127_ DISCONTINUED |
Suzuki Front | RM80 | 86-01 | 17x1.40 | 32H | Front | EB_404 | NO | XS0-31177_ |
Suzuki Front | RM80 | 86-01 | 19x1.40 | 32H | Front | GB_404 | NO | XS0-31197_ |
Suzuki Front | RM85 | 02-08, 12, 15-23 | 17x1.40 | 32H | Front | EB_404 | NO | XS0-31177_ |
Suzuki Front | RM85 | 02-08, 12, 15-23 | 19x1.40 | 32H | Front | GB_404 | NO | XS0-31197_ |
Suzuki Front | RM85L | 03-08, 12 | 17x1.40 | 32H | Front | EB_404 | NO | XS0-31177_ |
Suzuki Front | RM85L | 03-08, 12 | 19x1.40 | 32H | Front | GB_404 | NO | XS0-31197_ |
Suzuki Front | RM100 | 2003 | 19x1.40 | 28H | Front | GB_405 | YES | XS9-21197_ |
Suzuki Front | DRZ110 | 03-05 | 14x1.40 | 32H | Front | BB_431 | YES | XS0-21147_ |
Suzuki Front | RM125 | 97-00 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-31217_ |
Suzuki Front | RM125 | 86-96 & 01-08 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Suzuki Front | RM250 | 97-00 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-31217_ |
Suzuki Front | RM250 | 86-96 & 01-08 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Suzuki Front | RMZ250 | 04-06 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-21217_ |
Suzuki Front | RMZ250 | 07-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-32217_ |
Suzuki Front | RMX250 | 89-98 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Suzuki Front | DRZ250 | 01-07 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Suzuki Front | DR350 | 97-99 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Suzuki Front | DRZ400 | 00-04 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-31217_ |
Suzuki Front | DRZ400E | 00-07 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-31217_ |
Suzuki Front | DRZ400S & SM | 00-09 & 11-20 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-31217_ |
Suzuki Front | RMX450Z | 10-11, 17-19 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-32217_ |
Suzuki Front | RMZ450 | 05-24 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-32217_ |
Suzuki Rear | RM60 | 2003 | 12x1.60 | NA | Rear | AC_431 | YES | XS0-21127_ |
Suzuki Rear | RM65 | 03-05 | 12x1.60 | 28H | Rear | AC_361 | YES | XS0-22127_ |
Suzuki Rear | RM80 | 95-01 | 14x1.60 | 32H | Rear | BC_404 | NO | XS0-31147_ |
Suzuki Rear | RM80 | 86-01 | 16x1.85 | 32H | Rear | DD_404 | NO | XS0-31167_ |
Suzuki Rear | RM85 | 02-08, 12, 15-23 | 14x1.60 | 32H | Rear | BC_404 | NO | XS0-31147_ |
Suzuki Rear | RM85 | 02-08, 12, 15-23 | 16x1.85 | 32H | Rear | DD_404 | NO | XS0-31167_ |
Suzuki Rear | RM85L | 03-08, 12 | 14x1.60 | 32H | Rear | BC_404 | NO | XS0-31147_ |
Suzuki Rear | RM85L | 03-08, 12 | 16x1.85 | 32H | Rear | DD_404 | NO | XS0-31167_ |
Suzuki Rear | RM100 | 2003 | 16x1.85 | 28H | Rear | DD_410 | YES | XS9-21167_ |
Suzuki Rear | DRZ110 | 03-05 | 12x1.60 | 36H | Rear | AC_411 | YES | XS0-23127_ |
Suzuki Rear | RM125 | 88-08 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-31187_ |
Suzuki Rear | RM125 | 88-08 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-31187_ |
Suzuki Rear | RM125 | 88-08 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-31197_ |
Suzuki Rear | RM125 | 88-08 | 19x2.15 | 36H | Rear | GE_410 | YES | XS8-31197_ |
Suzuki Rear | RM125 | 88-08 | 19x2.50 | 36H | Rear | GF_410 | NO | XS8-32197_ |
Suzuki Rear | RM250 | 88-08 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-31187_ |
Suzuki Rear | RM250 | 88-08 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-31187_ |
Suzuki Rear | RM250 | 88-08 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-31197_ |
Suzuki Rear | RM250 | 88-08 | 19x2.15 | 36H | Rear | GE_410 | YES | XS8-31197_ |
Suzuki Rear | RM250 | 88-08 | 19x2.50 | 36H | Rear | GF_410 | NO | XS8-32197_ |
Suzuki Rear | RMZ250 | 04-06 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-25187_ |
Suzuki Rear | RMZ250 | 04-06 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-25187_ |
Suzuki Rear | RMZ250 | 04-06 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-23197_ |
Suzuki Rear | RMZ250 | 04-06 | 19x2.15 | 36H | Rear | GE_410 | YES | XS8-23197_ |
Suzuki Rear | RMZ250 | 07-24 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-34187_ |
Suzuki Rear | RMZ250 | 07-24 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-34187_ |
Suzuki Rear | RMZ250 | 07-24 | 19x1.85 | 36H | Rear | GD_422 | YES | XS8-33197_ |
Suzuki Rear | RMZ250 | 07-24 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-33197_ |
Suzuki Rear | RMX250 | 89-98 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-31187_ |
Suzuki Rear | RMX250 | 89-98 | 18x2.15 | 36H | Rear | FE_410 | YES | XS8-31187_ |
Suzuki Rear | RMX250 | 89-98 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-31197_ |
Suzuki Rear | RMX250 | 89-98 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-31197_ |
Suzuki Rear | DRZ400 | 00-04 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-31187_ |
Suzuki Rear | DRZ400 | 00-04 | 18x2.15 | 36H | Rear | FE_410 | YES | XS8-31187_ |
Suzuki Rear | DRZ400 | 00-04 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-31197_ |
Suzuki Rear | DRZ400 | 00-04 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-31197_ |
Suzuki Rear | DRZ400E | 00-07 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-31187_ |
Suzuki Rear | DRZ400E | 00-07 | 18x2.15 | 36H | Rear | FE_410 | YES | XS8-31187_ |
Suzuki Rear | DRZ400E | 00-07 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-31197_ |
Suzuki Rear | DRZ400E | 00-07 | 19x2.15 | 36H | Rear | GE_410 | NO | XS8-31197_ |
Suzuki Rear | DRZ400S & SM | 00-09 & 11-20 | 18x2.15 | 36H | Rear | FE_410 | NO | XS8-32187_ |
Suzuki Rear | RMX450Z | 10-11, 17-19 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-34187_ |
Suzuki Rear | RMX450Z | 10-11, 17-19 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-34187_ |
Suzuki Rear | RMX450Z | 10-11, 17-19 | 19x1.85 | 36H | Rear | GD_422 | YES | XS8-33197_ |
Suzuki Rear | RMX450Z | 10-11, 17-19 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-33197_ |
Suzuki Rear | RMZ450 | 05-24 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-34187_ |
Suzuki Rear | RMZ450 | 05-24 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-34187_ |
Suzuki Rear | RMZ450 | 05-24 | 19x1.85 | 36H | Rear | GD_422 | YES | XS8-33197_ |
Suzuki Rear | RMZ450 | 05-24 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-33197_ |
Yamaha Front | TTR50E (Larger guage spokes. Hub must be drilled) | 06-09, 12-24 | 12x1.60 | 28H | Front | AC_408 | NO | XS0-11127_ DISCONTINUED |
Yamaha Front | YZ65 | 2021 | 14x1.60 | 32H | Front | BC_404 | NA | NA |
Yamaha Front | YZ80 | 93-01 | 17x1.40 | 32H | Front | EB_404 | YES | XS0-41177_ |
Yamaha Front | YZ80 (Big Wheel) | 93-01 | 19x1.40 Optional size | 32H | Front | GB_404 | NO | XS0-41197_ |
Yamaha Front | YZ85 | 02-25 | 17x1.40 | 32H | Front | EB_404 | YES | XS0-41177_ |
Yamaha Front | YZ85 (Big Wheel) | 02-25 | 19x1.40 Optional size | 32H | Front | GB_404 | NO | XS0-41197_ |
Yamaha Front | YZ125 | 92-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ125X | 20-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ250 | 91-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ250F | 01-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ250FX | 15-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ250X | 16-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | WR250 | 92-97 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | WR250F (won't fit WR250R) | 01-09, 11-13, 15-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ400F | 98-99 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | WR400F | 98-00 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ426F | 00-02 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | WR426F | 01-02 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ450F | 03-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | YZ450FX | 16-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | WR450F | 03-09, 11-25 | 21x1.60 | 36H | Front | IC_408 | NO | XS9-11207_ |
Yamaha Front | Tenere T7 | 19-24 | 21x1.85 | 36H | Front | ID_408 | NA | NA |
Yamaha Rear | YZ65 | 2021 | 12x1.60 | 32H | Rear | AC_406 | NA | NA |
Yamaha Rear | YZ80 | 88-92 | 14x1.60 | 32H | Rear | BC_405 | * YES | NA |
Yamaha Rear | YZ80 | 93 | 14x1.60 | 32H | Rear | BC_404 | * YES | NA |
Yamaha Rear | YZ80 | 94-01 | 14x1.60 | 32H | Rear | BC_404 | YES | XS0-41147_ |
Yamaha Rear | YZ80 (Big Wheel) | 94-01 | 16x1.85 Optional size | 32H | Rear | DD_404 | NO | XS0-41167_ |
Yamaha Rear | YZ85 | 02-25 | 14x1.60 | 32H | Rear | BC_404 | YES | XS0-41147_ |
Yamaha Rear | YZ85 (Big Wheel) | 02-25 | 16x1.85 Optional size | 32H | Rear | DD_404 | NO | XS0-41167_ |
Yamaha Rear | YZ125 | 89-98 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | YZ125 | 89-98 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | YZ125 | 89-98 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-45187-OBR (Discontinued) |
Yamaha Rear | YZ125 | 89-98 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-42197_ |
Yamaha Rear | YZ125 | 89-98 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-42197_ |
Yamaha Rear | YZ125 | 99-25 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ125 | 99-25 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ125 | 99-25 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | YZ125 | 99-25 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ125 | 99-25 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ125 | 99-25 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | YZ125X | 20-25 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ125X | 20-25 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ125X | 20-25 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ125X | 20-25 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ250 | 89-98 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | YZ250 | 89-98 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | YZ250 | 89-98 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-45187-OBR (Discontinued) |
Yamaha Rear | YZ250 | 89-98 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-42197_ |
Yamaha Rear | YZ250 | 89-98 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-42197_ |
Yamaha Rear | YZ250 | 99-25 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ250 | 99-25 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ250 | 99-25 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | YZ250 | 99-25 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ250 | 99-25 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ250 | 99-25 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | YZ250F | 01-08 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ250F | 01-08 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ250F | 01-08 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | YZ250F | 01-08 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ250F | 01-08 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ250F | 01-08 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | YZ250F | 09-21 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-47187_ |
Yamaha Rear | YZ250F | 09-21 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-47187_ |
Yamaha Rear | YZ250F | 09-21 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-47197_ |
Yamaha Rear | YZ250F | 09-21 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-47197_ |
Yamaha Rear | YZ250F | 22-24 | 19x2.15 | 36H | Rear | GE_406 | YES | XS8-48197_ |
Yamaha Rear | YZ250FX | 15-21 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ250FX | 15-21 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ250FX | 15-21 | 18x2.50 | 36H | Rear | FF_422 | NA | XS8-46187_ |
Yamaha Rear | YZ250FX | 15-21 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ250FX | 15-21 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ250FX | 15-21 | 19x2.50 | 36H | Rear | GF_422 | NA | XS8-45197_ |
Yamaha Rear | YZ250X | 16-25 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ250X | 16-25 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ250X | 16-25 | 18x2.50 | 36H | Rear | FF_422 | NA | XS8-46187_ |
Yamaha Rear | YZ250X | 16-25 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ250X | 16-25 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ250X | 16-25 | 19x2.50 | 36H | Rear | GF_422 | NA | XS8-45197_ |
Yamaha Rear | TTR250 | 99-06 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | TTR250 | 99-06 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | TTR250 | 99-06 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-45187-OBR (Discontinued) |
Yamaha Rear | TTR250 | 99-06 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-42197_ |
Yamaha Rear | TTR250 | 99-06 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-42197_ |
Yamaha Rear | WR250 | 91-97 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | WR250 | 91-97 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | WR250 | 91-97 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-45187-OBR (Discontinued) |
Yamaha Rear | WR250 | 91-97 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-42197_ |
Yamaha Rear | WR250 | 91-97 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-42197_ |
Yamaha Rear | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-43187_ |
Yamaha Rear | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-43187_ |
Yamaha Rear | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-41197_ |
Yamaha Rear | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-41197_ |
Yamaha Rear | WR250F (won't fit WR250R) | 01-09, 11-13, 15-21 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | YZ400F | 98 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | YZ400F | 98 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | YZ400F | 98 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-45187-OBR (Discontinued) |
Yamaha Rear | YZ400F | 98 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-42197_ |
Yamaha Rear | YZ400F | 98 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-42197_ |
Yamaha Rear | YZ400F | 99 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ400F | 99 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ400F | 99 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | YZ400F | 99 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ400F | 99 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ400F | 99 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | WR400F | 98 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | WR400F | 98 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-41187 (Discontinued) |
Yamaha Rear | WR400F | 98 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-45187-OBR (Discontinued) |
Yamaha Rear | WR400F | 98 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-42197_ |
Yamaha Rear | WR400F | 98 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-42197_ |
Yamaha Rear | WR400F | 99-00 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-43187_ |
Yamaha Rear | WR400F | 99-00 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-43187_ |
Yamaha Rear | WR400F | 99-00 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | WR400F | 99-00 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-41197_ |
Yamaha Rear | WR400F | 99-00 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-41197_ |
Yamaha Rear | WR400F | 99-00 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | YZ426F | 00-02 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ426F | 00-02 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ426F | 00-02 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | YZ426F | 00-02 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ426F | 00-02 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ426F | 00-02 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | WR426F | 01-02 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-43187_ |
Yamaha Rear | WR426F | 01-02 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-43187_ |
Yamaha Rear | WR426F | 01-02 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | WR426F | 01-02 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-41197_ |
Yamaha Rear | WR426F | 01-02 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-41197_ |
Yamaha Rear | WR426F | 01-02 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | YZ450F | 03-08 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ450F | 03-08 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ450F | 03-08 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | YZ450F | 03-08 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ450F | 03-08 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ450F | 03-08 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | YZ450F | 09-21 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-47187_ |
Yamaha Rear | YZ450F | 09-21 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-47187_ |
Yamaha Rear | YZ450F | 09-21 | 18x2.50 | 36H | Rear | FF_422 | NA | XS8-46187_ |
Yamaha Rear | YZ450F | 09-21 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-47197_ |
Yamaha Rear | YZ450F | 09-21 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-47197_ |
Yamaha Rear | YZ450F | 09-21 | 19x2.50 | 36H | Rear | GF_422 | NA | XS8-45197_ |
Yamaha Rear | YZ450F | 22-25 | 19x2.15 | 36H | Rear | GE_406 | YES | XS8-48197_ |
Yamaha Rear | YZ450FX | 16-25 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-43187_ |
Yamaha Rear | YZ450FX | 16-25 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-43187_ |
Yamaha Rear | YZ450FX | 16-25 | 18x2.50 | 36H | Rear | FF_422 | NA | XS8-46187_ |
Yamaha Rear | YZ450FX | 16-25 | 19x1.85 | 36H | Rear | GD_406 | YES | XS8-41197_ |
Yamaha Rear | YZ450FX | 16-25 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-41197_ |
Yamaha Rear | YZ450FX | 16-25 | 19x2.50 | 36H | Rear | GF_422 | NA | XS8-45197_ |
Yamaha Rear | WR450F | 03-09, 11-21 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-43187_ |
Yamaha Rear | WR450F | 03-09, 11-21 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-43187_ |
Yamaha Rear | WR450F | 03-09, 11-21 | 18x2.50 | 36H | Rear | FF_422 | NO | XS8-46187_ |
Yamaha Rear | WR450F | 03-09, 11-21 | 19x1.85 | 36H | Rear | GD_406 | NO | XS8-41197_ |
Yamaha Rear | WR450F | 03-09, 11-21 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-41197_ |
Yamaha Rear | WR450F | 03-09, 11-21 | 19x2.50 | 36H | Rear | GF_422 | NO | XS8-45197_ |
Yamaha Rear | Tenere T7 *Rim Needs to be Re-Angled | 19-24 | 18x3.50 | 36H | Rear | FIK407GA | NA | NA |
KTM Front | 65SX (O.E. size is 14x1.60) | 98-24 | 14x1.40 | 32H | Front | BB_406 | YES | NA |
KTM Front | 65XC (O.E. size is 14x1.60) | 07-09 | 14x1.40 | 32H | Front | BB_406 | YES | NA |
KTM Front | 85SX | 03-23 | 17x1.40 | 32H | Front | EB_421 | YES | NA |
KTM Front | 85SX | 03-23 | 19x1.60 | 32H | Front | GC_421 | YES | NA |
KTM Front | 85XC | 08-09 | 17x1.40 | 32H | Front | EB_421 | YES | NA |
KTM Front | 85XC | 08-09 | 19x1.60 | 32H | Front | GC_421 | YES | NA |
KTM Front | 105SX | 04, 06-11 | 17x1.40 | 32H | Front | EB_421 | YES | NA |
KTM Front | 105SX | 04, 06-11 | 19x1.60 | 32H | Front | GC_421 | YES | NA |
KTM Front | 105XC | 08-09 | 17x1.40 | 32H | Front | EB_421 | YES | NA |
KTM Front | 105XC | 08-09 | 19x1.60 | 32H | Front | GC_421 | YES | NA |
KTM Front | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-51217_ |
KTM Front | All SX 125-530 | 07-24 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-52217_ |
KTM Front | Most Non-SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-51217_ |
KTM Front | All Non-SX 125-530 (Does NOT include adventure or Super Enduro models) | 07-24 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-52217_ |
KTM Front | All Full Size Off-Road / Dual Sport Models (Except Adventure, or Super Enduro & Street Models) 125-530 | 07-24 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-52217_ |
KTM Front | 950 Adventure | 03-05 | 21x2.15 | 36H | Front | IE_408 | NA | NA |
KTM Front | 422 rims DO NOT FIT 690 or 950 Super Enduro - Euro Drill Pattern | |||||||
KTM Rear | 65SX | 98-24 | 12x1.60 | 32H | Rear | AC_406 | YES | NA |
KTM Rear | 65XC | 07-09 | 12x1.60 | 32H | Rear | AC_406 | YES | NA |
KTM Rear | 85SX | 03-24 | 14x1.60 | 32H | Rear | BC_421 | YES | NA |
KTM Rear | 85SX | 03-24 | 16x1.85 | 32H | Rear | DD_421 | YES | NA |
KTM Rear | 85XC | 08-09 | 14x1.60 | 32H | Rear | BC_421 | YES | NA |
KTM Rear | 85XC | 08-09 | 16x1.85 | 32H | Rear | DD_421 | YES | NA |
KTM Rear | 105SX | 04, 06-11 | 14x1.60 | 32H | Rear | BC_421 | YES | NA |
KTM Rear | 105SX | 04, 06-11 | 16x1.85 | 32H | Rear | DD_421 | YES | NA |
KTM Rear | 105XC | 08-09 | 14x1.60 | 32H | Rear | BC_421 | YES | NA |
KTM Rear | 105XC | 08-09 | 16x1.85 | 32H | Rear | DD_421 | YES | NA |
KTM Rear | Most Non SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-51187_ |
KTM Rear | Most Non SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-51187_ |
KTM Rear | Most Non SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 19x1.85 | 36H | Rear | GD_422 | NO | XS8-51197_ |
KTM Rear | Most Non SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 19x2.15 | 36H | Rear | GE_422 | NO | XS8-51197_ |
KTM Rear | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 18x1.85 | 36H | Rear | FD_406 | NO | XS8-51187_ |
KTM Rear | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 18x2.15 | 36H | Rear | FE_422 | NO | XS8-51187_ |
KTM Rear | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 19x1.85 | 36H | Rear | GD_422 | YES | XS8-51197_ |
KTM Rear | Most SX 125-525 (Note: Spoke Kits may not fit all models for the years listed.) | 03-06 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-51197_ |
KTM Rear | All Full Size Models 125-530 (If 18x1.85 is the stock size) *Does not fit adventure or Super Enduro models | 07-24 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-52187_ |
KTM Rear | All Full Size Models 125-530 (If 18x2.15 is the stock size) *Does not fit adventure or Super Enduro models | 07-24 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-52187_ |
KTM Rear | All Full Size Models 125-530 (If 19x1.85 is the stock size) *Does not fit adventure models | 07-24 | 19x1.85 | 36H | Rear | GD_422 | YES | XS8-52197 |
KTM Rear | All Full Size Models 125-530 (If 19x2.15 is the stock size) *Does not fit adventure or Super Enduro models | 07-24 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-52197_ |
KTM Rear | All Full Size Off-Road / Dual Sport Models (Except Adventure, or Super Enduro & Street Models) 125-530 | 07-24 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-52187_ |
KTM Rear | All Full Size Off-Road / Dual Sport Models (Except Adventure, or Super Enduro & Street Models) 125-530 | 07-24 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-52187_ |
KTM Rear | All Full Size Off-Road / Dual Sport Models (Except Adventure, or Super Enduro & Street Models) 125-530 | 07-24 | 19x1.85 | 36H | Rear | GD_422 | YES | XS8-52197_ |
KTM Rear | All Full Size Off-Road / Dual Sport Models (Except Adventure, or Super Enduro & Street Models) 125-530 | 07-24 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-52197_ |
KTM Rear | 422 rims DO NOT FIT 690 or 950 Super Enduro - Euro Drill Pattern | |||||||
Aprillia Front | RVX 4.5 | 07-08 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Aprillia Front | RVX 5.5 | 07-08 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Aprillia Rear | RVX 4.5 | 07-08 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Aprillia Rear | RVX 5.5 | 07-08 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
ATK Front | All full size models | 89-98 | 21x1.60 | 36H | Front | IC_408 | NO | NA |
ATK Rear | All full size models | 89-98 | 18x2.15 | 36H | Rear | FE_410 | NO | NA |
ATK Rear | All full size models | 89-98 | 18x2.50 | 36H | Rear | FF_410 | NO | NA |
ATK Rear | All full size models | 89-98 | 19x2.15 | 36H | Rear | GE_410 | NO | NA |
ATK Rear | All full size models | 89-98 | 19x2.50 | 36H | Rear | GF_410 | NO | NA |
Beta Front | 250-525RR | 08-Current | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Beta Front | 250-525RR | 13-Current | 21x1.60 | 36H | Front | IC_408 | NA | XS9-52217_ |
Beta Front | 250-525RS | 08-Current | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Beta Front | 250-525RS | 13-Current | 21x1.60 | 36H | Front | IC_408 | NA | XS9-52217_ |
Beta Front | 250, 300, 450,498 Supermoto | 08-Current | 16.5x3.50 | 36H | Front | JI_409 | NA | NA |
Beta Front | 250, 300, 450,498 Supermoto | 08-Current | 17x3.50 | 36H | Front | EI_418 | NA | NA |
Beta Rear | 250-525RR | 08-Current | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Beta Rear | 250-525RR | 13-Current | 18x2.15 | 36H | Rear | FE_422 | NA | XS8-52187_ |
Beta Rear | 250-525RS | 08-Current | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Beta Rear | 250-525RS | 13-Current | 18x2.15 | 36H | Rear | FE_422 | NA | XS8-52187_ |
Beta Rear | 250-525RR | 08-Current | 18x2.50 | 36H | Rear | FF_422 | NA | NA |
Beta Rear | 250-525RS | 08-Current | 18x2.50 | 36H | Rear | FF_422 | NA | NA |
Beta Rear | 250-525RR | 08-Current | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Beta Rear | 250-525RR | 13-Current | 19x2.15 | 36H | Rear | GE_422 | NA | XS8-52197_ |
Beta Rear | 250-525RS | 08-Current | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Beta Rear | 250-525RS | 13-Current | 19x2.15 | 36H | Rear | GE_422 | NA | XS8-52197_ |
Beta Rear | 250-525RR | 08-Current | 19x2.50 | 36H | Rear | GF_422 | NA | NA |
Beta Rear | 250-525RS | 08-Current | 19x2.50 | 36H | Rear | GF_422 | NA | NA |
Beta Rear | 250-525 Supermoto | 08-Current | 17x4.25 | 36H | Rear | EK_418 | NA | NA |
Beta Rear | 250-525 Supermoto | 08-Current | 17x4.50 | 36H | Rear | EL_411 | NA | NA |
Beta Rear | 250-525 Supermoto | 08-Current | 17x5.00 | 36H | Rear | EM_411 | NA | NA |
Beta Rear | 250-525 Supermoto | 08-Current | 17x5.50 | 36H | Rear | EN_411 | NA | NA |
Gas Gas Front | All Models | 97-19 | 21x1.60 | 36H | Front | IC_434 | NO | NA |
Gas Gas Front | MC250F | 22-25 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Gas Gas Front | MC450F | 22-25 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Gas Gas Front | Most EC Models | 20-25 | 21x1.60 | 36H | Front | IC_408 | NA | XS9-52217_ |
Gas Gas Rear | All full size models | 97-19 | 18x2.15 | 36H | Rear | FE_433 | NO | NA |
Gas Gas Rear | All full size models | 97-19 | 18x2.50 | 36H | Rear | FF_433 | NO | NA |
Gas Gas Rear | All full size models | 97-19 | 19x2.15 | 36H | Rear | GE_433 | NO | NA |
Gas Gas Rear | All full size models | 97-19 | 19x2.50 | 36H | Rear | GF_433 | NO | NA |
Gas Gas Rear | MC250F | 00-25 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Gas Gas Rear | MC250F | 22-25 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Gas Gas Rear | MC450F | 22-25 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Gas Gas Rear | MC450F | 22-25 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Gas Gas Rear | Most EC Models | 00-25 | 18x2.15 | 36H | Rear | FE_422 | NA | XS8-52187_ |
Gas Gas Rear | Most EC Models | 00-25 | 19x2.15 | 36H | Rear | GE_422 | NA | XS8-52197_ |
Husaberg Front | All Models | 00-14 | 21x1.60 | 36H | Front | IC_408 | NO | NA |
Husaberg Rear | All full size models | 00-14 | 18x2.15 | 36H | Rear | FE_422 | NO | NA |
Husaberg Rear | All full size models | 00-14 | 18x2.50 | 36H | Rear | FF_422 | NO | NA |
Husaberg Rear | All full size models | 00-14 | 19x1.85 | 36H | Rear | GD_422 | NO | NA |
Husaberg Rear | All full size models | 00-14 | 19x2.15 | 36H | Rear | GE_422 | NO | NA |
Husaberg Rear | All full size models | 00-14 | 19x2.50 | 36H | Rear | GF_422 | NO | NA |
Husqvarna Front | TC65 (O.E. size is 14x1.60) | 17-24 | 14x1.40 | 32H | Front | BB_406 | NA | NA |
Husqvarna Front | TC85 | 14-24 | 17x1.40 | 32H | Front | EB_421 | NA | NA |
Husqvarna Front | TC85 | 14-24 | 19x1.60 | 32H | Front | GC_421 | NA | NA |
Husqvarna Front | CR125 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | CR125 | 11-13 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TC125 | 14-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TE125 | 15-16 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | WR125 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | WR125 | 11-13 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | CR150 | 2011 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TE150 | 17-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FC250 | 14-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FE250 | 14-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TC250 | 2010 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TC250 | 11-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TE250 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TE250 | 11-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TXC250 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TXC250 | 11-13 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TXCI250 | 2011 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TE300 | 14-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | WR250 | 09-13 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TX300 | 17-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | WR300 | 09-13 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TC310 | 2013 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TE310 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TE310 | 11-13 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TXC310 | 12-13 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FC350 | 14-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FE350 | 14-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FE350S | 15-16 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FX350 | 17-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TC449 | 11-13 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TE449 | 11-13 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TXC449 | 11-12 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FC450 | 14-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FE450 | 16-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FS450 Supermoto | 17-20 | 16.5x3.50 | NA | Front | JI_416N | NA | NA |
Husqvarna Front | FX450 | 17-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | SM450R | up to 2010 | 17x3.50 | NA | Front | EI_418 | NO | NA |
Husqvarna Front | SM450RR | up to 2010 | 17x3.50 | NA | Front | EI_418 | NO | NA |
Husqvarna Front | TC450 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TE450 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TXC450 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | FE501 | 14-18 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | FE501S | 15-16 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | SM510R | up to 2010 | 17x3.50 | NA | Front | EI_418 | NO | NA |
Husqvarna Front | TC510 | 2009 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TE510 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TXC510 | 09-10 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | TE511 | 11-13 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | TXC511 | 11-12 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Husqvarna Front | SM610IE | up to 2010 | 17x3.50 | NA | Front | EI_418 | NO | NA |
Husqvarna Front | TE630 | 2011 | 21x1.60 | 36H | Front | IC_434 | NA | NA |
Husqvarna Front | All FULL SIZE Models (Including WR250/300 11-13) | 94-10 | 21x1.60 | 36H | Front | IC_434 | NO | NA |
Husqvarna Front | All FULL SIZE Models (Except WR250/300 11-13, TE630 2011) | 11-13 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-52217_ |
Husqvarna Front | ALL FULL SIZE Models | 14-24 | 21x1.60 | 36H | Front | IC_408 | YES | XS9-52217_ |
Husqvarna Rear | TC65 | 17-24 | 12x1.60 | 32H | Rear | AC_406 | NA | NA |
Husqvarna Rear | TC85 | 14-24 | 14x1.60 | 32H | Rear | BC_421 | NA | NA |
Husqvarna Rear | TC85 | 14-24 | 16x1.85 | 32H | Rear | DD_421 | NA | NA |
Husqvarna Rear | CR125 | 11-13 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | CR125 | 09-10 | 19x2.15 | NA | Rear | GE_433 | NA | NA |
Husqvarna Rear | TC125 | 14-18 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | TE125 | 15-16 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | WR125 | 09-10 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | WR125 | 11-13 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | CR150 | 2011 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | TE150 | 17-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | FC250 | 14-18 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | FE250 | 14-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TC250 | 10-11 | 19x1.85 | NA | Rear | GD_433 | NA | NA |
Husqvarna Rear | TC250 | 2012 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | TC250 | 14-16, 2018 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | TC250 | 2017 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TE250 | 09-10 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TE250 | 11-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TXC250 | 09-10 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TXC250 | 11-13 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TXCI250 | 2011 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | WR250 | 09-13 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TE300 | 14-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TX300 | 17-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | WR300 | 09-13 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TE310 | 09-10 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TE310 | 11-13 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TXC310 | 12-13 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | FC350 | 14-18 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | FE350 | 14-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | FE350S | 15-16 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | FX350 | 17-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TC449 | 11-13 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | TE449 | 11-13 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TXC449 | 11-12 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | FC450 | 14-18 | 19x2.15 | 36H | Rear | GE_422 | NA | NA |
Husqvarna Rear | FE450 | 16-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | FS450 Supermoto | 17-20 | 17x5.00 | NA | Rear | EM_422N | NA | NA |
Husqvarna Rear | FX450 | 17-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | SM450R | up to 2010 | 17x4.25 | NA | Rear | EK_418 | NO | NA |
Husqvarna Rear | SM450RR | up to 2010 | 17x4.25 | NA | Rear | EK_418 | NO | NA |
Husqvarna Rear | TC450 | 2009 | 19x2.15 | NA | Rear | GE_433 | NA | NA |
Husqvarna Rear | TC450 | 2010 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TE450 | 09-10 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TXC450 | 09-10 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | FE501 | 14-18 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | FE501S | 15-16 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | SM510R | up to 2010 | 17x4.25 | NA | Rear | EK_418 | NO | NA |
Husqvarna Rear | TC510 | 2009 | 19x2.15 | NA | Rear | GE_433 | NA | NA |
Husqvarna Rear | TE510 | 09-10 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TXC510 | 09-10 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | TE511 | 11-13 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | TXC511 | 11-12 | 18x2.15 | 36H | Rear | FE_422 | NA | NA |
Husqvarna Rear | SM610IE | up to 2010 | 17x4.25 | NA | Rear | EK_418 | NO | NA |
Husqvarna Rear | TE630 | 2011 | 18x2.15 | 36H | Rear | FE_433 | NA | NA |
Husqvarna Rear | All FULL SIZE Models (Including WR250/300 11-13) | 94-10 | 18x1.85 | NA | Rear | FD_433 | NO | NA |
Husqvarna Rear | All FULL SIZE Models (Including WR250/300 11-13) | 94-10 | 18x2.15 | 36H | Rear | FE_433 | NO | NA |
Husqvarna Rear | All FULL SIZE Models (Including WR250/300 11-13) | 94-10 | 18x2.50 | NA | Rear | FF_433 | NO | NA |
Husqvarna Rear | All FULL SIZE Models (Including WR250/300 11-13) | 94-10 | 19x1.85 | NA | Rear | GD_433 | NO | NA |
Husqvarna Rear | All FULL SIZE Models (Including WR250/300 11-13) | 94-10 | 19x2.15 | NA | Rear | GE_433 | NO | NA |
Husqvarna Rear | All FULL SIZE Models (Including WR250/300 11-13) | 94-10 | 19x2.50 | NA | Rear | GF_433 | NO | NA |
Husqvarna Rear | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-52187_ |
Husqvarna Rear | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-52187_ |
Husqvarna Rear | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 18x2.50 | 36H | Rear | FF_422 | NO | NA |
Husqvarna Rear | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 19x1.85 | 36H | Rear | GD_422 | YES | XS8-52197 |
Husqvarna Rear | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-52197 |
Husqvarna Rear | ALL FULL SIZE models (Except WR250/300, TE630) | 11-13 | 19x2.50 | 36H | Rear | GF_422 | NO | NA |
Husqvarna Rear | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 18x1.85 | 36H | Rear | FD_406 | YES | XS8-52187_ |
Husqvarna Rear | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 18x2.15 | 36H | Rear | FE_422 | YES | XS8-52187_ |
Husqvarna Rear | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 18x2.50 | 36H | Rear | FF_422 | NO | NA |
Husqvarna Rear | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 19x1.85 | 36H | Rear | GD_422 | YES | XS8-52197 |
Husqvarna Rear | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 19x2.15 | 36H | Rear | GE_422 | YES | XS8-52197 |
Husqvarna Rear | ALL FULL SIZE Off-road / Dual Spoke Models | 14-24 | 19x2.50 | 36H | Rear | GF_422 | NO | NA |
TM Front | MX Junior | 12-Current | 19x1.40 | 28H | Front | GB_441 | NA | NA |
TM Front | 125 MX & ED | 00-11 | 21x1.60 | 36H | Front | IC_423 | NA | NA |
TM Front | 144 MX & ED | 00-11 | 21x1.60 | 36H | Front | IC_423 | NA | NA |
TM Front | 250 MX & ED | 00-11 | 21x1.60 | 36H | Front | IC_423 | NA | NA |
TM Front | 300 MX & ED | 00-11 | 21x1.60 | 36H | Front | IC_423 | NA | NA |
TM Front | 450 MX & ED | 00-11 | 21x1.60 | 36H | Front | IC_423 | NA | NA |
TM Front | 530 MX & ED | 00-11 | 21x1.60 | 36H | Front | IC_423 | NA | NA |
TM Front | 125 MX & ED | 12-Current | 21x1.60 | 36H | Front | IC_441 | NA | NA |
TM Front | 144 MX & ED | 12-Current | 21x1.60 | 36H | Front | IC_441 | NA | NA |
TM Front | 250 MX & ED | 12-Current | 21x1.60 | 36H | Front | IC_441 | NA | NA |
TM Front | 300 MX & ED | 12-Current | 21x1.60 | 36H | Front | IC_441 | NA | NA |
TM Front | 450 MX & ED | 12-Current | 21x1.60 | 36H | Front | IC_441 | NA | NA |
TM Front | 530 MX & ED | 12-Current | 21x1.60 | 36H | Front | IC_441 | NA | NA |
TM Front | All full size models | 00-11 | 21x1.60 | 36H | Front | IC_423 | NA | NA |
TM Front | All full size models | 12-Current | 21x1.60 | 36H | Front | IC_441 | NA | NA |
TM Rear | MX Junior | 12-Current | 16x1.85 | 28H | Rear | DD_441 | NO | NA |
TM Rear | All full size models | 00-11 | 18x1.85 | 36H | Rear | FD_423 | NO | NA |
TM Rear | All full size models | 00-11 | 18x2.15 | 36H | Rear | FE_423 | NO | NA |
TM Rear | All full size models | 00-11 | 18x2.50 | 36H | Rear | FF_423 | NO | NA |
TM Rear | All full size models | 00-11 | 19x1.85 | 36H | Rear | GD_423 | NO | NA |
TM Rear | All full size models | 00-11 | 19x2.15 | 36H | Rear | GE_423 | NO | NA |
TM Rear | All full size models | 00-11 | 19x2.50 | 36H | Rear | GF_423 | NO | NA |
TM Rear | All full size models | 12-Current | 18x1.85 | 36H | Rear | FD_441 | NO | NA |
TM Rear | All full size models | 12-Current | 18x2.15 | 36H | Rear | FE_441 | NO | NA |
TM Rear | All full size models | 12-Current | 18x2.50 | 36H | Rear | FF_441 | NO | NA |
TM Rear | All full size models | 12-Current | 19x1.85 | 36H | Rear | GD_441 | NO | NA |
TM Rear | All full size models | 12-Current | 19x2.15 | 36H | Rear | GE_441 | NO | NA |
TM Rear | All full size models | 12-Current | 19x2.50 | 36H | Rear | GF_441 | NO | NA |
Sherco Front | 50 | 07-16 | 21x1.60 | NA | Front | IC_410 | NO | NA |
Sherco Front | 125 | 07-16 | 21x1.60 | NA | Front | IC_410 | NO | NA |
Sherco Front | 250 | 07-16 | 21x1.60 | NA | Front | IC_410 | NO | NA |
Sherco Front | 300 | 07-16 | 21x1.60 | NA | Front | IC_410 | NO | NA |
Sherco Front | 450 | 07-16 | 21x1.60 | NA | Front | IC_410 | NO | NA |
Sherco Front | 50 | 17-24 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Sherco Front | 125 | 17-24 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Sherco Front | 250 | 17-24 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Sherco Front | 300 | 17-24 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Sherco Front | 450 | 17-24 | 21x1.60 | 36H | Front | IC_408 | NA | NA |
Sherco Front | 250 Supermoto | 07-16 | 16.5x3.50 | NA | Front | JI_411 | NO | NA |
Sherco Front | 250 Supermoto | 07-16 | 17x3.50 | NA | Front | EI_418 | NO | NA |
Sherco Front | 300 Supermoto | 07-16 | 16.5x3.50 | NA | Front | JI_411 | NO | NA |
Sherco Front | 300 Supermoto | 07-16 | 17x3.50 | NA | Front | EI_418 | NO | NA |
Sherco Front | 450 Supermoto | 07-16 | 16.5x3.50 | NA | Front | JI_411 | NO | NA |
Sherco Front | 450 Supermoto | 07-16 | 17x3.50 | NA | Front | EI_418 | NO | NA |
Sherco Rear | 50 | 07-16 | 18x1.85 | NA | Rear | FD_422 | NO | NA |
Sherco Rear | 50 | 07-16 | 18x2.15 | 36H | Rear | FE_422 | NO | NA |
Sherco Rear | 50 | 07-16 | 19x1.85 | 36H | Rear | GD_422 | NO | NA |
Sherco Rear | 50 | 07-24 | 19x2.15 | 36H | Rear | GE_422 | NO | NA |
Sherco Rear | 125 | 07-24 | 18x1.85 | NA | Rear | FD_422 | NO | NA |
Sherco Rear | 125 | 07-24 | 18x2.15 | 36H | Rear | FE_422 | NO | NA |
Sherco Rear | 125 | 07-24 | 19x1.85 | 36H | Rear | GD_422 | NO | NA |
Sherco Rear | 125 | 07-24 | 19x2.15 | 36H | Rear | GE_422 | NO | NA |
Sherco Rear | 250 | 07-24 | 18x1.85 | NA | Rear | FD_422 | NO | NA |
Sherco Rear | 250 | 07-24 | 18x2.15 | 36H | Rear | FE_422 | NO | NA |
Sherco Rear | 250 | 07-24 | 19x1.85 | 36H | Rear | GD_422 | NO | NA |
Sherco Rear | 250 | 07-24 | 19x2.15 | 36H | Rear | GE_422 | NO | NA |
Sherco Rear | 250 Supermoto | 07-24 | 17x4.25 | NA | Rear | EK_418 | NO | NA |
Sherco Rear | 250 Supermoto | 07-24 | 17x4.50 | NA | Rear | EL_411 | NO | NA |
Sherco Rear | 250 Supermoto | 07-24 | 17x5.00 | NA | Rear | EM_411 | NO | NA |
Sherco Rear | 250 Supermoto | 07-24 | 17x5.00 | NA | Rear | EN_411 | NO | NA |
Sherco Rear | 300 | 07-24 | 18x1.85 | NA | Rear | FD_422 | NO | NA |
Sherco Rear | 300 | 07-24 | 18x2.15 | 36H | Rear | FE_422 | NO | NA |
Sherco Rear | 300 | 07-24 | 19x1.85 | 36H | Rear | GD_422 | NO | NA |
Sherco Rear | 300 | 07-24 | 19x2.15 | 36H | Rear | GE_422 | NO | NA |
Sherco Rear | 300 Supermoto | 07-24 | 17x4.25 | NA | Rear | EK_418 | NO | NA |
Sherco Rear | 300 Supermoto | 07-24 | 17x4.50 | NA | Rear | EL_411 | NO | NA |
Sherco Rear | 300 Supermoto | 07-24 | 17x5.00 | NA | Rear | EM_411 | NO | NA |
Sherco Rear | 300 Supermoto | 07-24 | 17x5.00 | NA | Rear | EN_411 | NO | NA |
Sherco Rear | 450 | 07-24 | 18x1.85 | NA | Rear | FD_422 | NO | NA |
Sherco Rear | 450 | 07-24 | 18x2.15 | 36H | Rear | FE_422 | NO | NA |
Sherco Rear | 450 | 07-24 | 19x1.85 | 36H | Rear | GD_422 | NO | NA |
Sherco Rear | 450 | 07-24 | 19x2.15 | 36H | Rear | GE_422 | NO | NA |
Sherco Rear | 450 Supermoto | 07-24 | 17x4.25 | NA | Rear | EK_418 | NO | NA |
Sherco Rear | 450 Supermoto | 07-24 | 17x4.50 | NA | Rear | EL_411 | NO | NA |
Sherco Rear | 450 Supermoto | 07-24 | 17x5.00 | NA | Rear | EM_411 | NO | NA |
Sherco Rear | 450 Supermoto | 07-24 | 17x5.00 | NA | Rear | EN_411 | NO | NA |
